Feature:
★Vibration Isolators and Seismic Restraints

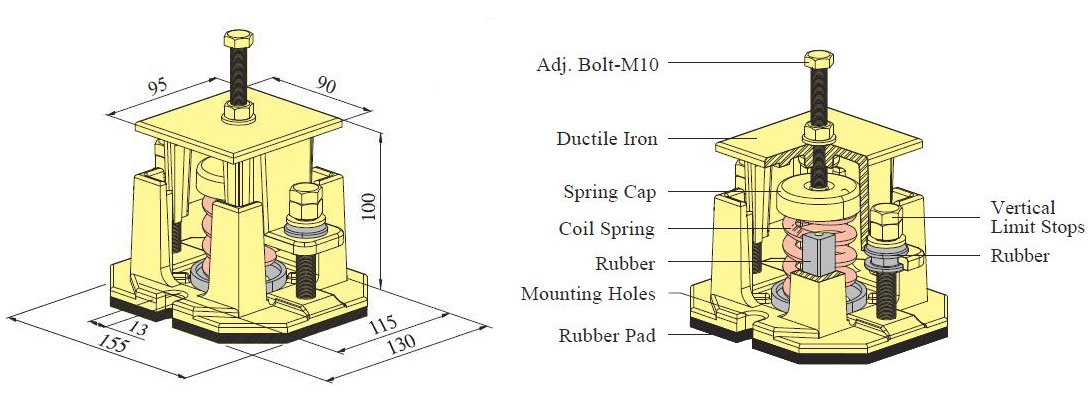

★Ductile iron frame and housing.
★Seismic strength: horizontal direction: 1G, vertical direction: 0.5G.
★Low natural frequency.
★Hop dip galvanization finish.
★Non-skid Neoprene pad.
★Resilient housing guides to prevent metal-to-matel contact.
★Quick and easy installation.
★Heavy-duty vibration isolation.
★Weather resistant finish.
Applications:
★Heavy engines、Pumps、Compressors、Chillers、Boilers、Generators
|
Type |
Rated Capacity KG |
Spring Rate KG/mm |
Rated Defl. mm |
Color Code |
|
LG-020-S |
10~20 |
0.8 |
25 |
Yellow |
|
LG-030-S |
20~30 |
1.2 |
25 |
Green |
|
LG-050-S |
30~50 |
2.0 |
25 |
Red |
|
LG-070-S |
50~80 |
2.8 |
25 |
Blue |
|
LG-090-S |
80~100 |
3.6 |
25 |
Brown |
|
LG-120-S |
100~130 |
4.8 |
25 |
Gray |
|
LG-150-S |
130~150 |
6.0 |
25 |
White |
|
LG-180-S |
150~180 |
7.2 |
25 |
Orange |
|
LG-250-S |
180~250 |
10.0 |
25 |
Green |
