Type |
Dimensions（mm） |
Base Thickness |
||
|
W |
H |
￠BD |
||
|

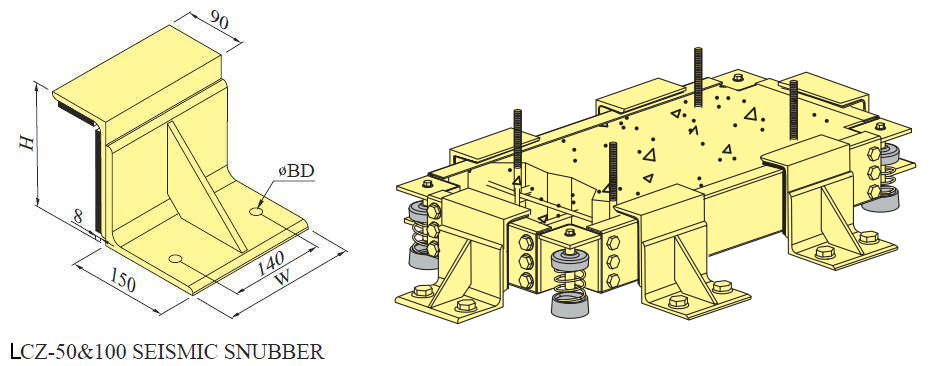

LCZ-50 |
200 |
200 |
18 |
6" |
|
LCZ-100 |
200 |
250 |
18 |
8" |
|
Type |
Dimensions（mm） |
Thru Bolt |
|||||||
|
L |
L1 |
W |
H |
￠BD |
A |
B |
C |
||
|

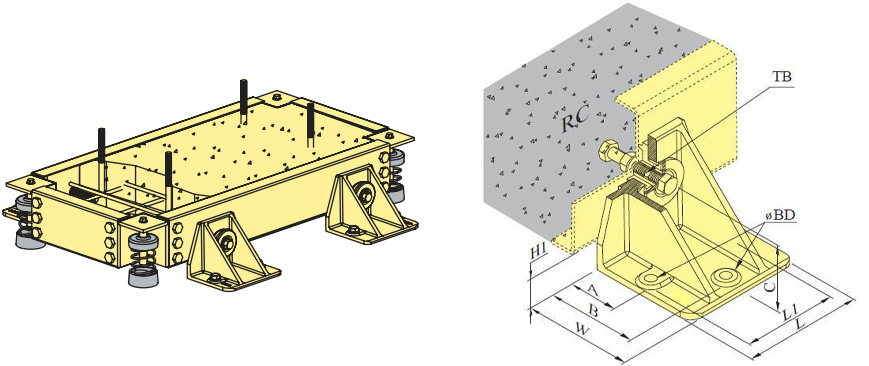

LCZ-250 |
180 |
140 |
120 |
110 |
14 |
60 |
* |
60 |
5/8" |
|
LCZ-500 |
220 |
170 |
170 |
160 |
18 |
90 |
* |
90 |
3/4" |
|
LCZ-600 |
220 |
170 |
200 |
195 |
18 |
90 |
165 |
120 |
3/4" |
|
Type |
Dimensions（mm） |
|||||||||
|
L |
W |
A |
B |
C |
D |
￠BD |
H |
TB |
t |
|
|

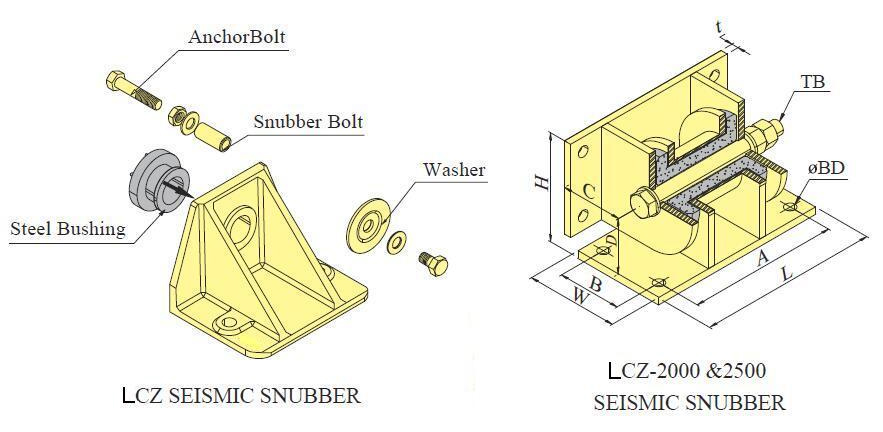

LCZ-2000 |
310 |
160 |
260 |
110 |
107 |
107 |
19 |
187 |
M24 |
12 |
|
LCZ-2500 |
350 |
190 |
290 |
130 |
134 |
134 |
25 |
229 |
M30 |
19 |
