Feature：
★ TheLIVA VF series pneumatic vibration isolation system uses servo controlled air springs.
★Minimal settling time with optimum damping and correct valve gain.
★Vertical adjustable damping.
★Support payloads from200 kg to5000 kg.
★Per isolator Valve re-leveling accuracies to ±0.2 mm.
★Easily integrated into machine designs.
Applications：
★Metrology Instruments、Electron Microscopes、 Coordinate Measuring Machines、Precision Manufacturing Equipment、Sensitive Optical Laboratory Equipment、Environmental Test Equipment、Inspection and Calibration Equipment、Specialized Isolated Foundations
|

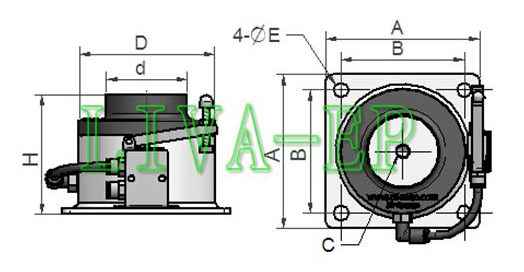

Type |
Dimensions（mm） |
Capacity KG |
||||||
|
A |
B |
C |
￠D |
￠d |
￠E |
H |
||
|
LIVA-400-VF |
160 |
140 |
M12 |
123 |
76 |
14 |
110 |
200~400 |
|
LIVA-700-VF |
200 |
160 |
M12 |
164 |
110 |
14 |
110 |
400~700 |
|
LIVA-900-VF |
200 |
160 |
M16 |
190 |
130 |
14 |
110 |
700~900 |
|
LIVA-1200-VF |
250 |
200 |
M16 |
212 |
150 |
14 |
110 |
900~1200 |
|
LIVA-1600-VF |
300 |
250 |
M16 |
263 |
190 |
14 |
110 |
1200~1600 |
|
LIVA-2000-VF |
350 |
300 |
M16 |
314 |
240 |
14 |
110 |
1600~2000 |
|
LIVA-3500-VF |
470 |
410 |
M20 |
422 |
330 |
18 |
110 |
2000~3500 |
|
LIVA-5000-VF |
530 |
470 |
M24 |
502 |
390 |
20 |
110 |
3500~5000 |
