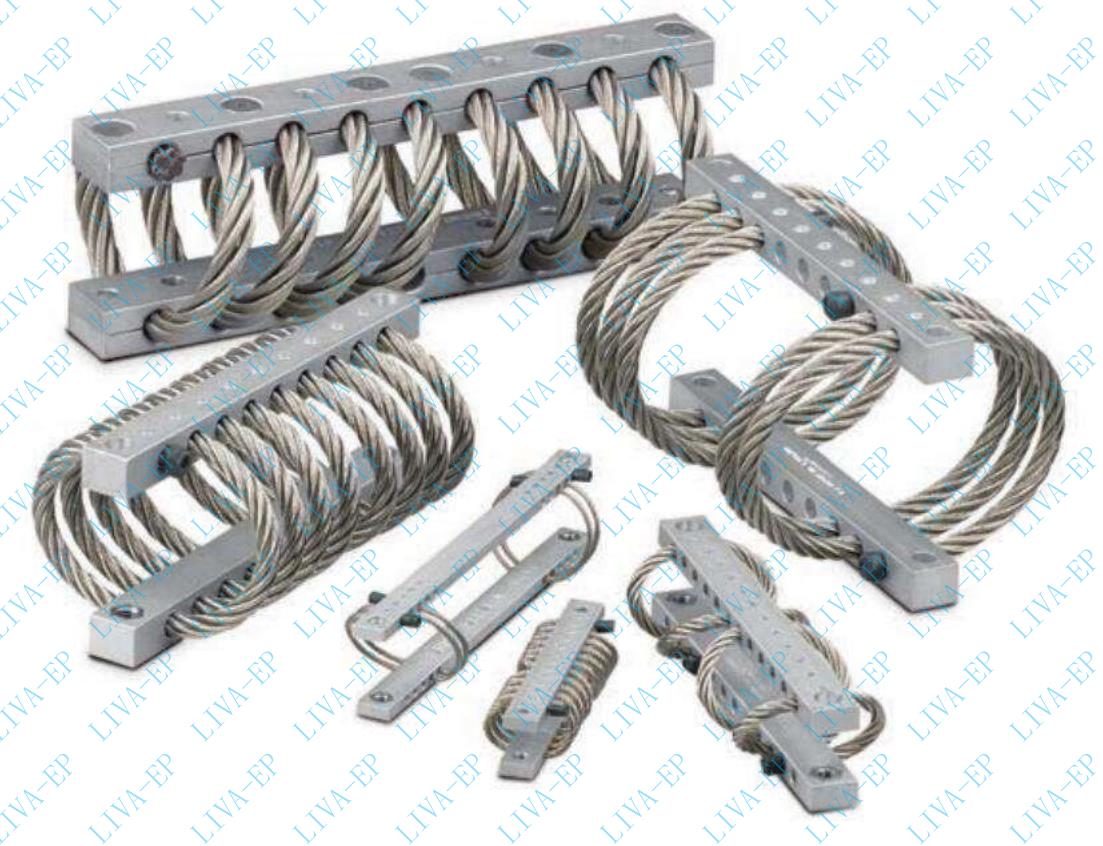

Feature:
★All-metal multidirectional anti-vibration/shock mounts.
★Excellent reliability and long lifespan.
★High damping.
★Corrosion resistant.
★ Wide temperature range: -180°C～+300°C.
★Great adaptability/versatility.
★Customized design can be done.

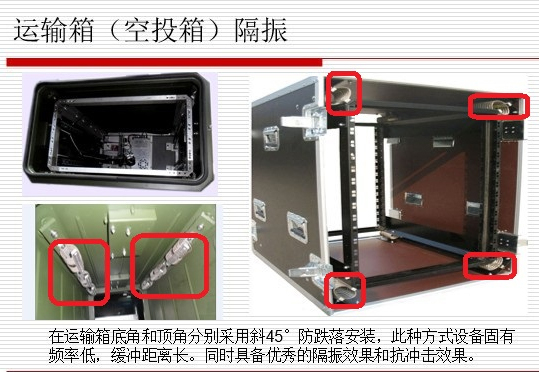

Applications:

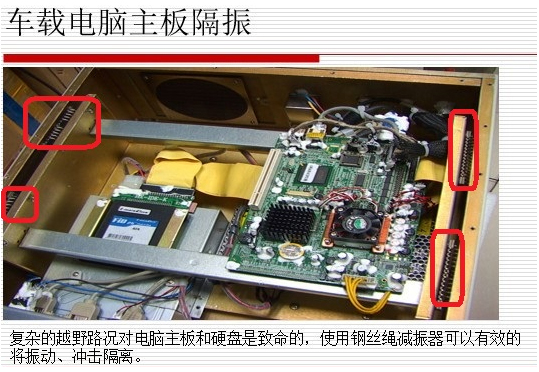

★Car Equipment
★Shipboard equipment
★Airborne equipment
★Fire and communications equipment
|

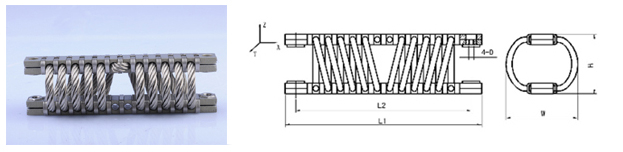

Type |
Dimensions（mm) |
Static Stiffness (N/㎜) |
Max.Shock (kN) |
Rated Capacity (kg) |
Weight(KG) |
||||||||||
|
L1 |
L2 |
H |
W |
D |
Kx |
K45 |
Kz |
Mx |
M45 |
Mz |
Mx |
M45 |
Mz |
||
|
GS-3-01 |
80 |
68 |
18 |
25 |
M5 |
9 |
8 |
16 |
0.07 |
1.6 |
3 |
1.6 |
3 |
4.5 |
0.09 |
|
GS-3-02 |
20 |
28 |
4.5 |
6 |
11 |
0.06 |
1 |
2 |
1 |
2 |
3 |
0.09 |
|||
|
GS-3-03 |
25 |
30 |
2 |
3 |
7 |
0.05 |
0.8 |
1.5 |
0.8 |
1.5 |
2.5 |
0.09 |
|||
|
GS-3-04 |
28 |
33 |
1.1 |
2.6 |
5.4 |
0.05 |
0.5 |
1 |
0.5 |
1 |
1.8 |
0.09 |
|||
|
GS-3-05 |
30 |
36 |
1.2 |
2 |
4.2 |
0.05 |
0.4 |
0.7 |
0.4 |
0.7 |
1.2 |
0.11 |
|||
|
GS-3-06 |
33 |
38 |
1.3 |
1.7 |
3.2 |
0.08 |
0.2 |
0.5 |
0.2 |
0.5 |
0.7 |
0.11 |
|||
|
GS-3-07 |
33 |
38 |
0.7 |
0.7 |
1.3 |
0.02 |
0.1 |
0.3 |
0.1 |
0.3 |
0.5 |
0.09 |
|||
|
GS-3-08 |
112 |
100 |
23 |
28 |
M6 |
27 |
29 |
54 |
0.47 |
6 |
12 |
6 |
12 |
18 |
0.22 |
|
GS-3-09 |
25 |
31 |
17 |
26 |
45 |
0.51 |
4 |
10 |
4 |
10 |
14.5 |
0.22 |
|||
|
GS-3-10 |
28 |
33 |
13 |
14 |
30 |
0.56 |
3 |
5 |
3 |
5 |
8.5 |
0.22 |
|||
|
GS-3-11 |
33 |
38 |
5.8 |
10 |
17 |
0.4 |
2 |
4 |
2 |
4 |
6 |
0.24 |
|||
|
GS-3-12 |
36 |
41 |
4.1 |
8 |
14 |
0.4 |
1.5 |
3 |
1.5 |
3 |
5 |
0.24 |
|||
|
GS-3-13 |
38 |
43 |
3.5 |
7 |
12 |
0.31 |
1 |
3 |
1 |
3 |
4 |
0.24 |
|||
|
GS-3-15 |
127 |
114 |
28 |
36 |
M6 |
43 |
54 |
105 |
0.52 |
10 |
20 |
10 |
20 |
30 |
0.29 |
|
GS-3-16 |
31 |
38 |
25 |
39 |
72 |
0.5 |
7 |
15 |
7 |
15 |
20 |
0.29 |
|||
|
GS-3-17 |
33 |
41 |
17 |
27 |
47 |
0.48 |
5 |
10 |
5 |
10 |
16 |
0.31 |
|||
|
GS-3-18 |
36 |
43 |
13 |
24 |
40 |
0.4 |
3 |
7 |
3 |
7 |
13 |
0.35 |
|||
|
GS-3-19 |
38 |
46 |
10 |
20 |
33 |
0.44 |
2 |
5 |
2 |
5 |
10 |
0.37 |
|||
|
GS-3-20 |
41 |
48 |
7.8 |
18 |
28 |
0.38 |
1.5 |
4 |
1.5 |
4 |
8 |
0.37 |
|||
|
Type |
Dimensions（mm) |
Static Stiffness (N/㎜) |
Max.Shock (kN) |
Rated Capacity (kg) |
Weight (KG) |
||||||||||
|
L1 |
L2 |
H |
W |
D |
Kx |
K45 |
Kz |
Mx |
M45 |
Mz |
Mx |
M45 |
Mz |
||
|
GS-3-21 |
127 |
114 |
31 |
36 |
M8 |
97 |
183 |
329 |
1 |
20 |
60 |
20 |
60 |
100 |
0.53 |
|
GS-3-22 |
33 |
38 |
70 |
131 |
247 |
1.1 |
15 |
45 |
15 |
45 |
70 |
0.55 |
|||
|
GS-3-23 |
38 |
43 |
54 |
97 |
160 |
1.2 |
12 |
25 |
12 |
25 |
40 |
0.55 |
|||
|
GS-3-24 |
41 |
46 |
35 |
72 |
118 |
0.8 |
10 |
20 |
10 |
20 |
30 |
0.58 |
|||
