Feature:
★All-metal multidirectional anti-vibration/shock mounts.
★Excellent reliability and long lifespan.
★High damping.
★Corrosion resistant.
★ Wide temperature range: -180°C～+300°C.
★Great adaptability/versatility.
★Customized design can be done.
Applications:
★Car Equipment
★Shipboard equipment
★Airborne equipment
★Fire and communications equipment
|
Type |

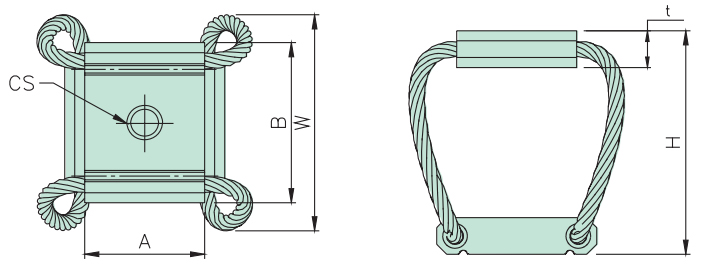

Dimensions（mm) |
Rated Capacity (KG) |
||||||
|
A、B |
W |
t |
H±1 |
CS |
Mz |
M45 |
Mx |
|
|
GS-1-01 |
10 |
19.8 |
3.5 |
12.7 |
M3 |
1.2 |
0.85 |
0.75 |
|
GS-1-02 |
14 |
27.9 |
5 |
21.6 |
M4 |
2.7 |
1.7 |
1.2 |
|
GS-1-03 |
18 |
34.3 |
6.5 |
25.4 |
M4 |
4.5 |
3 |
2.2 |
|
GS-1-04 |
20 |
41.9 |
8 |
25.4 |
M4 |
7.1 |
5.7 |
3.9 |
|
Type |
Static Stiffness（N/mm） |
Max.Dyn Deflection（mm） |
||||
|
Mz |
M45 |
Mx |
Mz |
M45 |
Mx |
|
|
GS-1-01 |
3.5 |
2.5 |
3.1 |
4 |
4 |
4 |
|
GS-1-02 |
7.6 |
4.7 |
4.6 |
8 |
12 |
10 |
|
GS-1-03 |
13.3 |
8.2 |
7.9 |
9 |
8 |
12 |
|
GS-1-04 |
21.6 |
14.6 |
14.6 |
8 |
8 |
11 |
