Feature:
★ TheLIVA VE series pneumatic vibration isolation system uses servo controlled air springs.
★Minimal settling time with optimum damping and correct valve gain.
★Vertical adjustable damping.
★Support payloads from75 kg to 1200 kg.
★Per isolator Valve re-leveling accuracies to ±0.2 mm.
★Easily integrated into machine designs.
Applications:
★Metrology Instruments、Electron Microscopes、 Coordinate Measuring Machines、Precision Manufacturing Equipment、Sensitive Optical Laboratory Equipment、Environmental Test Equipment、Inspection and Calibration Equipment、Specialized Isolated Foundations

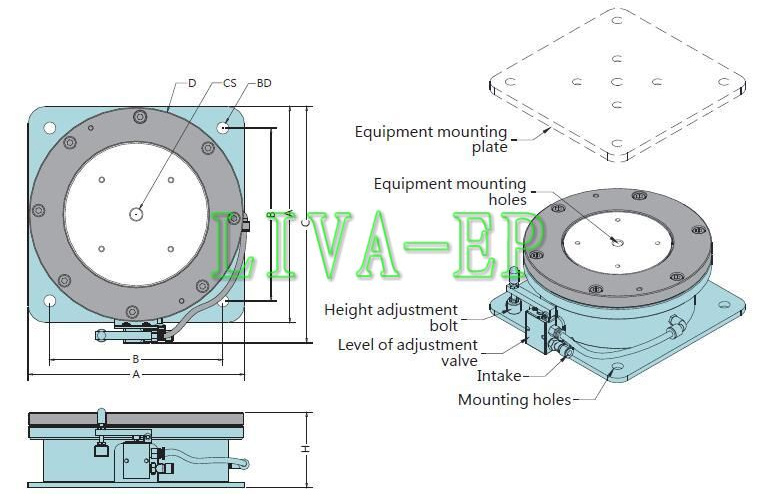

Note: The device mounting plate is optional.
|
Type |
Dimension（mm) |
Load Range KG |
||||||
|
A |
B |
C |
D |
H |
CS |
BD |
||
|
LIVA-75-VE |
110 |
95 |
130 |
72 |
88 |
M8 |
6 |
40~80 |
|
LIVA-150-VE |
140 |
115 |
166 |
114 |
88 |
M10 |
9 |
50~180 |
|
LIVA-400-VE |
170 |
135 |
195 |
174 |
88 |
M12 |
12 |
180~480 |
|
LIVA-700-VE |
200 |
160 |
225 |
200 |
88 |
M12 |
12 |
480~720 |
|
LIVA-1200-VE |
250 |
200 |
275 |
248 |
88 |
M16 |
14 |
720~1250 |
