Feature:
★Neoprene spring cup with a projecting bushing to prevent steel-to-steel contact.
★Neoprene bushing for upper mounting rod.
★Noise and vibration isolation.
★.Wide load range available.
★With V-type open design, the upper part of the shock absorber can be fixed directly on the floor or channel, saving installation space and time.

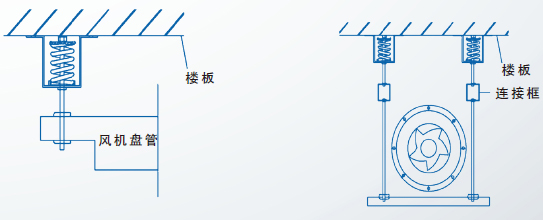

Applications:
★Hanging ceilings、HVAC ducting networks、Piping networks、Other suspension applications、Fans、Air units
|
Type |
Rated Capacity KG |

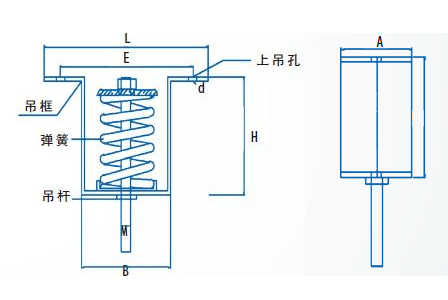

Dimensions（mm) |
||||||
|
A |
B |
E |
H |
L |
M |
d |
||
|
LV-020-S |
5~20 |
35 |
63 |
85 |
85 |
110 |
8 |
8.5 |
|
LV-030-S |
20~30 |
45 |
60 |
85 |
85 |
115 |
8 |
8.5 |
|
LV-050-S |
25~50 |
50 |
70 |
105 |
105 |
132 |
8 |
10.5 |
|
LV-070-S |
50~70 |
55 |
60 |
105 |
113 |
135 |
10 |
10.5 |
|
LV-120-S |
70~120 |
60 |
72 |
105 |
115 |
145 |
12 |
13 |
|
LV-150-S |
120~150 |
65 |
80 |
125 |
127 |
158 |
12 |
13 |
|
LV-200-S |
150~200 |
70 |
85 |
123 |
146 |
162 |
14 |
15 |
|
LV-250-S |
200~250 |
80 |
100 |
136 |
160 |
175 |
14 |
15 |
