Feature:
★Spring diameter shall be not less than 0.8 times the compressed height of the spring at the design load. Springs shall have a minimum additional travel to solid equal to 50 percent of the actual deflection.
★Neoprene spring cup with a projecting bushing to prevent steel-to-steel contact.
★Neoprene bushing for upper mounting rod.
★With deflection scale .
★Fail safe design.
★Noise and vibration isolation.
★Maintenance free.
★Wide load range available.
Applications:

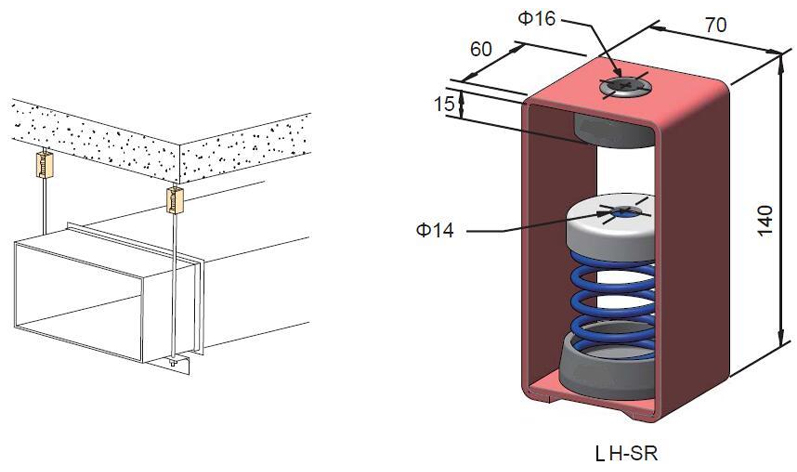

★Hanging ceilings、HVAC ducting networks、Piping networks、Other suspension applications、Fans、Air units
|
Type |
Spring rate KG/mm |
Rated Defl. mm |
Rated Capacity KG |
Color Code |
|
LH-020-SR |
0.8 |
25 |
10~20 |
Yellow |
|
LH-030-SR |
1.2 |
25 |
20~30 |
Green |
|
LH-050-SR |
2 |
25 |
30~50 |
Red |
|
LH-070-SR |
2.8 |
25 |
50~80 |
Blue |
|
LH-090-SR |
3.6 |
25 |
80~100 |
Brown |
|
LH-120-SR |
4.8 |
25 |
100~130 |
Gray |
|
LH-150-SR |
6 |
25 |
130~150 |
White |
