Feature:
★Spring diameter shall be not less than 0.8 times the compressed height of the spring at the design load. Springs shall have a minimum additional travel to solid equal to 50 percent of the actual deflection.
★Neoprene bushing for upper mounting rod
★With deflection scale
★Fail safe design.
★Noise and vibration isolation.
★Maintenance free .
★Wide load range available
Applications:
★Hanging ceilings、HVAC ducting networks、Other suspension applications
|

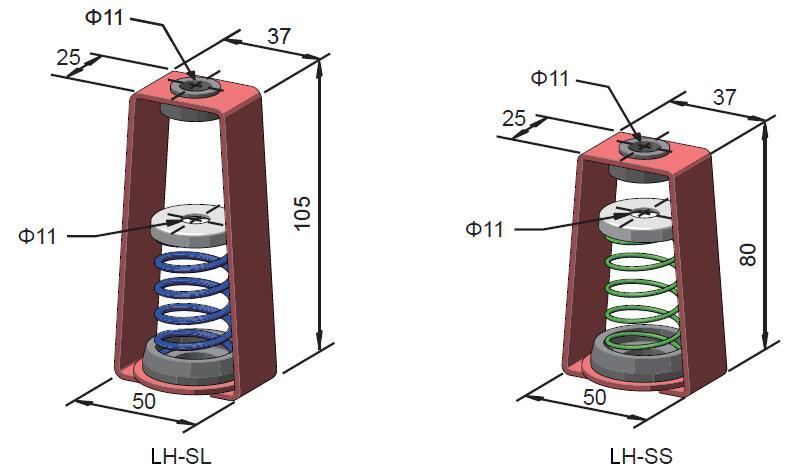

Type |
Spring rate KG/mm |
Rated Defl. mm |
Rated Capacity KG |
Color Code |
|
LH-150-SS |
0.6 |
25 |
10~15 |
Blue |
|
LH-025-SS |
1.0 |
25 |
15~25 |
Dark Green |
|
LH-150-SL |
0.6 |
25 |
10~15 |
Blue |
|
LH-025-SL |
1.0 |
25 |
15~25 |
Dark Green |
