Feature:
★Neoprene spring cup with a projecting bushing to prevent steel-to-steel contact.
★Neoprene bushing for upper mounting rod.
★Noise and vibration isolation.
★.Wide load range available.
Applications:

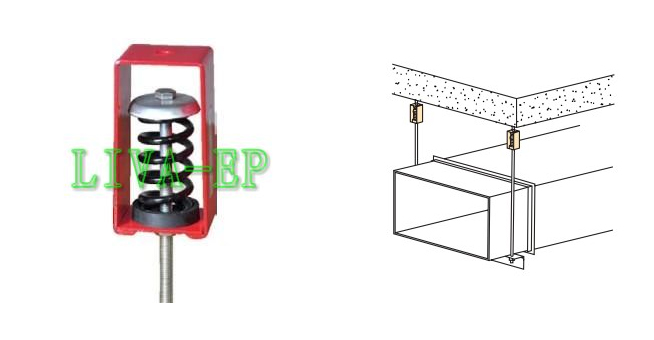

★Hanging ceilings、HVAC ducting networks、Piping networks、Other suspension applications、Fans、Air units
|
Type |
Rated Capacity KG |

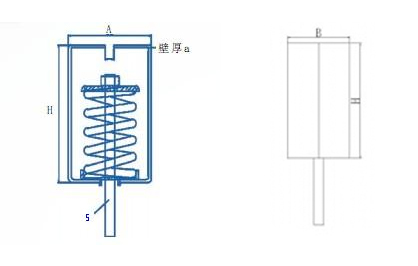

Dimensions (mm) |
||||||
|
H |
Cover A |
Lower A |
B |
a |
Bolt Hole |
Screw |
||
|
LH-020-S |
5~20 |
80 |
60 |
60 |
35 |
2.5 |
10.5 |
8 |
|
LH-030-S |
20~30 |
117 |
57 |
62 |
45 |
3 |
11 |
8 |
|
LH-050-S |
30~50 |
124 |
59 |
67 |
50 |
3 |
11 |
10 |
|
LH-070-S |
50~70 |
131 |
64 |
72 |
55 |
3 |
11 |
10 |
|
LH-120-S |
70~120 |
140 |
69 |
84 |
60 |
3 |
13 |
12 |
|
LH-150-S |
120~150 |
151 |
74 |
84 |
65 |
3 |
13 |
12 |
|
LH-200-S |
150~200 |
159 |
80 |
96 |
70 |
3 |
15 |
14 |
|
LH-250-S |
200~250 |
198 |
94 |
94 |
80 |
4 |
17 |
14 |
|
LH-300-S |
250~300 |
198 |
94 |
94 |
80 |
4 |
17 |
16 |
|
LH-450-S |
300~450 |
198 |
110 |
110 |
85 |
4 |
20 |
16 |
|
LH-650-S |
450~650 |
210 |
110 |
110 |
90 |
4 |
20 |
18 |
|
LH-1000-S |
650~1000 |
210 |
120 |
120 |
100 |
4 |
20 |
18 |
