Feature:
★Spring diameter shall be not less than 0.8 times the compressed height of the spring at the design load. Springs shall have a minimum additional travel to solid equal to 50 percent of the actual deflection.
★Neoprene bushing for upper mounting rod.
★With deflection scale.
★Fail safe design.
★Neoprene spring cup with a projecting bushing to prevent steel-to-steel contact.
★Noise and vibration isolation.
★Maintenance free .
★Wide load range available.

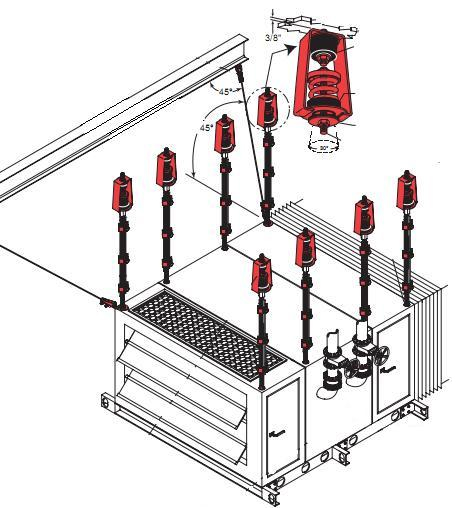

Applications:
★Hanging ceilings、
★HVAC ducting networks、
★Other suspension applications
★Piping networks
★Fans、Air units
|

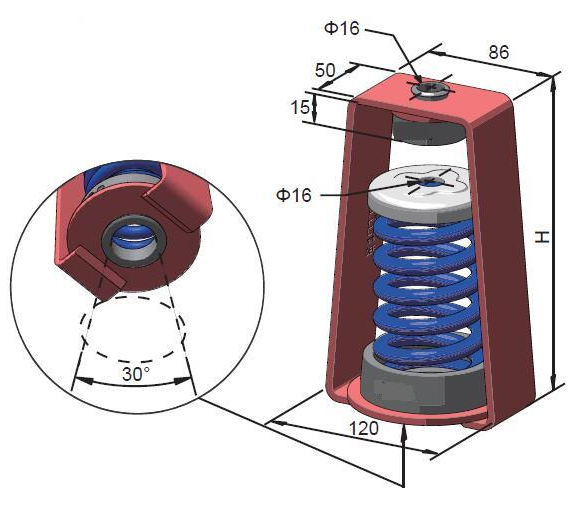

Type |
H mm |
|
LH-MR |
200 |
|
LH-C |
210 |
|
Type |
Spring rate KG/mm |
Rated Defl. mm |
Rated Capacity KG |
Color Code |
|
LH-050-MR |
2.1 |
25 |
30~50 |
Purple |
|
LH-100-MR |
4.0 |
25 |
50~130 |
Yellow |
|
LH-150-MR |
6.0 |
25 |
130~160 |
White |
|
LH-200-MR |
8.0 |
25 |
160~210 |
Green |
|
LH-250-MR |
10.0 |
25 |
210~260 |
Red |
|
LH-300-MR |
12.0 |
25 |
260~320 |
Green |
|
LH-400-MR |
16.0 |
25 |
360~430 |
Brown |
|
LH-500-MR |
20.0 |
25 |
470~530 |
Red |
|
LH-600-MR |
24.0 |
25 |
530~650 |
Gray |
|
LH-700-MR |
28.0 |
25 |
650~700 |
Yellow |
|
LH-850-MR |
34.0 |
25 |
700~850 |
Khaki |
|
LH-1000-MR |
40.0 |
25 |
850~1000 |
Dark Green |
|
Type |
Spring rate KG/mm |
Rated Defl. mm |
Rated Capacity KG |
Color Code |
|
LH-150-C |
3.8 |
40 |
100~160 |
Blue |
|
LH-200-C |
5.0 |
40 |
160~210 |
Brown |
|
LH-300-C |
6.9 |
40 |
210~310 |
Orange |
|
LH-350-C |
8.8 |
40 |
310~360 |
Gray |
|
LH-450-C |
11.3 |
40 |
360~460 |
Red |
|
LH-650-C |
16.3 |
40 |
460~670 |
Green |
|
LH-850-C |
21.3 |
40 |
670~850 |
Dark Green |
|
LH-1000-C |
26.6 |
40 |
720~1000 |
Yellow |
