Feature:
★Spring diameter shall be not less than 0.8 times the compressed height of the spring at the design load. Springs shall have a minimum additional travel to solid equal to 50 percent of the actual deflection.
★With deflection scale .
★Fail safe design.
★Heavy wall construction.
★Noise and vibration isolation.
★Maintenance free.
★Wide load range available.
Applications:
★Hanging ceilings
★HVAC ducting networks、Piping networks、Fans、Air handles
|

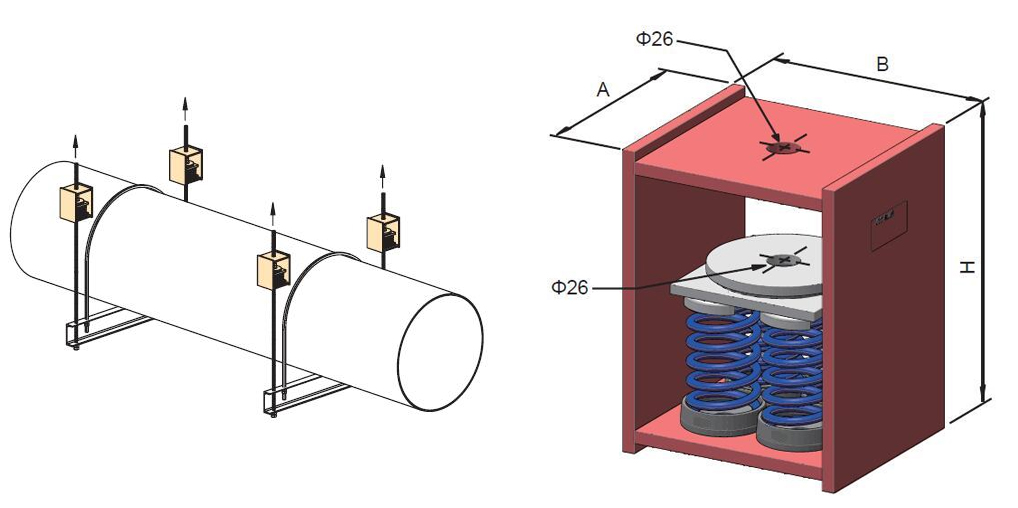

Type |
（mm） |
||
|
A |
B |
H |
|
|
JH-2-M |
100 |
220 |
290 |
|
JH-4-M |
200 |
220 |
290 |
|
Type |
Rated Capacity KG |
Spring rate KG/mm |
Rated Defl. mm |
Color Code |
|
LH-2-1200-M |
1000~1200 |
48 |
25 |
Gray |
|
LH-2-1400-M |
1200~1400 |
56 |
25 |
Yellow |
|
LH-2-1700-M |
1400~1700 |
68 |
25 |
Khaki |
|
LH-2-2000-M |
1700~2000 |
80 |
25 |
Dark Green |
|
LH-4-2400-M |
2000~~2400 |
96 |
25 |
Gray |
|
LH-4-2800-M |
2400~2800 |
112 |
25 |
Yellow |
|
LH-4-3400-M |
2800~3400 |
136 |
25 |
Khaki |
|
LH-4-4000-M |
3400~4000 |
160 |
25 |
Dark Green |
