Feature:
★The intrinsic spring resonance amplitude is eliminated by the double advantage of low frequency and damping of steel spring.
★Natural frequency 4.5 Hz - 4.9 Hz, damping ratio 0.065.
★Low natural frequency, good vibration isolation, convenient installation and replacement, safe and reliable, long working life, and strong adaptability to work environment.
★Can eliminate mechanical structure vibration, and protect and extend mechanical life.
Applications:
★Central air conditioning equipment such as pumps, fans, air conditioning boxes, vacuum pumps, heat pumps, etc.
★Small generator, air compressor, transformer, vibrating screen and other vibration equipment.
|
Type |
Rated CapacityKG |

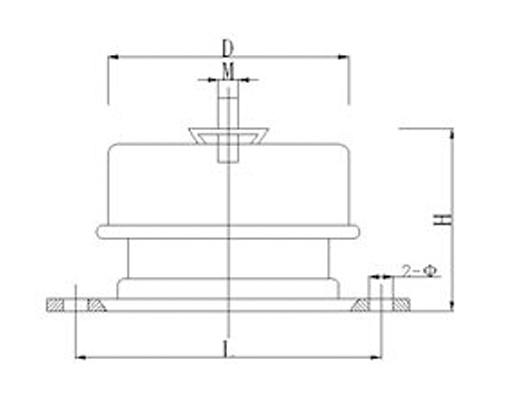

Dimensions mm |
||||
|
H |
D |
L |
M |
2-￠ |
||
|
LY-030 |
1~30 |
70 |
94 |
128 |
M12 |
M14 |
|
LY-050 |
30~50 |
70 |
94 |
128 |
M12 |
M14 |
|
LY-070 |
50~70 |
70 |
94 |
128 |
M12 |
M14 |
|
LY-120 |
70~120 |
70 |
94 |
128 |
M12 |
M14 |
|
LY-150 |
120~150 |
85 |
110 |
148 |
M12 |
M16 |
|
LY-200 |
150~200 |
85 |
110 |
148 |
M12 |
M16 |
|
LY-250 |
200~250 |
85 |
110 |
148 |
M12 |
M16 |
|
LY-320 |
250~320 |
85 |
110 |
148 |
M12 |
M16 |
|
LY-360 |
320~360 |
85 |
110 |
148 |
M12 |
M16 |
|
LY-420 |
360~420 |
85 |
110 |
148 |
M12 |
M16 |
