Feature:
★Spring with low natural frequency value design, and by ED and paint treatment, good weather resistance, high shock efficiency.
★Spring are heat treatment and stress relief, anti-fatigue performance.
★Spring diameter shall be not less than 0.8 times the compressed height of the spring at the design load. Springs shall have a minimum additional travel to solid equal to 50 percent of the actual deflection.
★ Internal use of the shock device design, high safety performance.
★Internal damping device design, effectively avoid the resonance phenomenon.
★Product shell with impact resistant corrosion-resistant materials, and do closed treatment.
★Matrix spring arrangement, so that the spring after the load in the best working condition, effectively improve the shock efficiency and equipment life.
★Simple installation, saving time.
Applications:

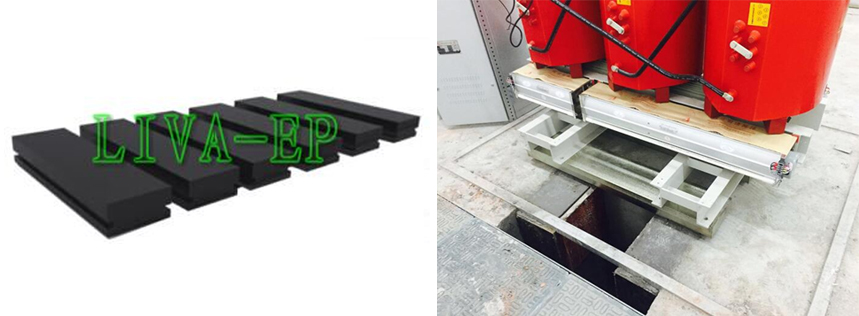

Transformers, generators, air compressors, vibration machines and so on.
Size and color can be customized
|

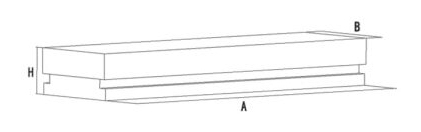

Type |
Dimensions mm |
Spring Rate KG/mm |
Rated Capacity KG |
||
|
A |
B |
H |
|||
|
L-JZ-800 |
850 |
300 |
150 |
32 |
720~880 |
|
L-JZ-1000 |
850 |
300 |
150 |
40 |
880~1100 |
|
L-JZ-1200 |
850 |
300 |
150 |
48 |
1100~1600 |
|
L-JZ-1600 |
850 |
300 |
150 |
64 |
1280~1680 |
|
L-JZ-2000 |
1000 |
300 |
150 |
80 |
1820~2180 |
|
L-JZ-2400 |
1000 |
300 |
150 |
96 |
2000~2450 |
|
L-JZ-2800 |
1000 |
300 |
150 |
112 |
2600~3000 |
|
L-JZ-3200 |
1200 |
300 |
150 |
128 |
2800~3200 |
|
L-JZ-4000 |
1200 |
300 |
150 |
160 |
3800~4000 |
