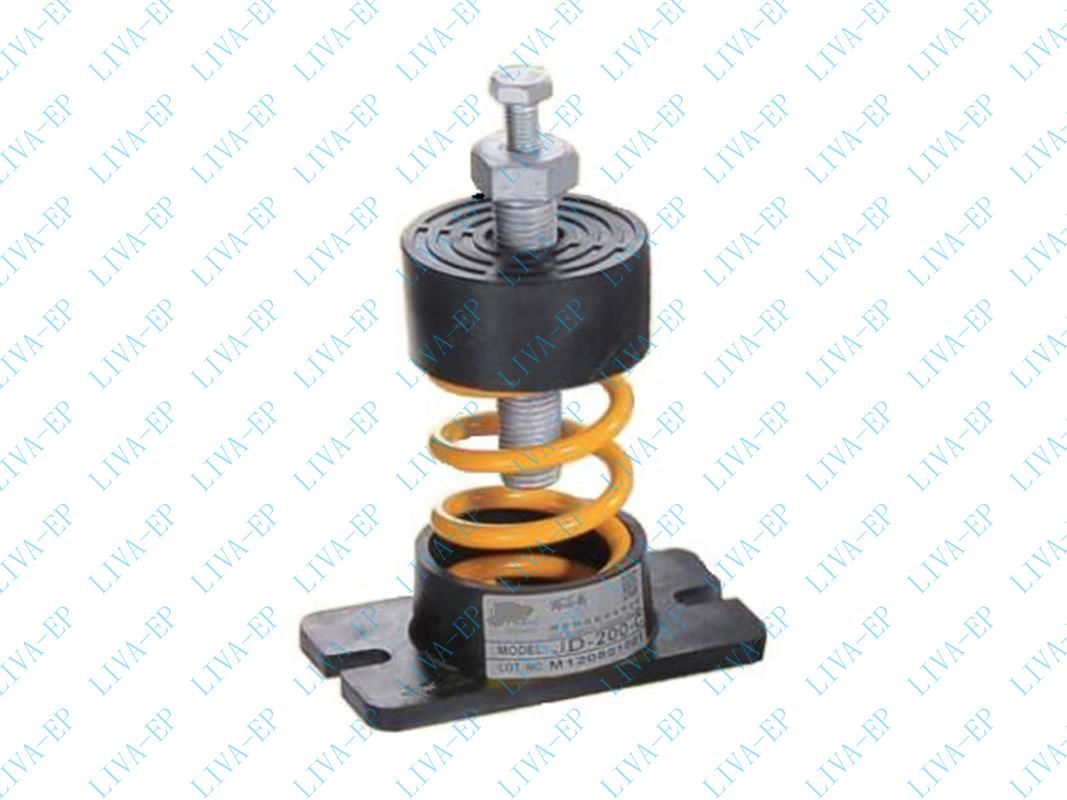

Feature:
★Mainly used with an inertial base as an open-type spring mount.
★Easy to install, allows easy inspection since the spring.
★Deflection can be visually checked.
★With a spring deflection of 25mm~75mm.
★Used for equipment that needs maximum isolation.
★Quick and easy installation.
★Heavy-duty vibration isolation.
★Spring diameter shall be not less than 0.8 times the compressed height of the spring at the design load. Springs shall have a minimum additional travel to solid equal to 50 percent of the actual deflection.
Applications:

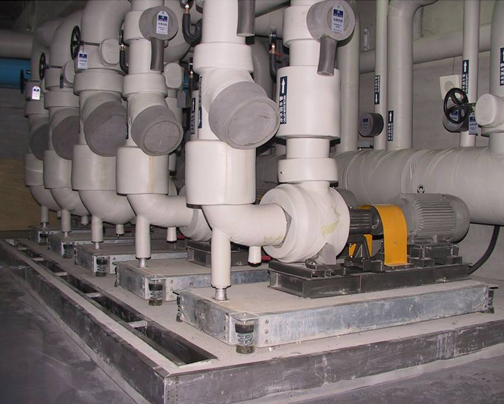

★Air blowers、Pump Base
|

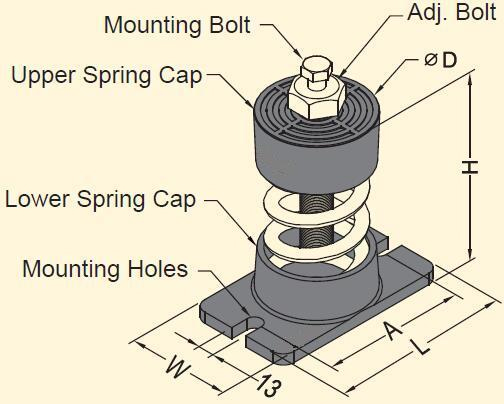

Type |
Dimensions (mm) |
|||||
|
L |
W |
A |
H |
ΦD |
CS |
|
|
LD-C |
145 |
83 |
116 |
154 |
83 |
M12 |
|
LD-A |
145 |
83 |
116 |
164 |
83 |
M13 |
|
Type |
Rated Capacity KG |
Spring Rate KG/mm |
Rated Defl. mm |
Color Code |
|
LD-100-C |
90~105 |
4.2 |
25 |
Yellow |
|
LD-150-C |
130~160 |
5.3 |
25 |
White |
|
LD-200-C |
160~210 |
7.1 |
25 |
Green |
|
LD-250-C |
210~260 |
8.7 |
25 |
Red |
|
LD-300-C |
260~320 |
10.8 |
25 |
Blue |
|
LD-350-C |
320~360 |
12.1 |
25 |
Red/Black |
|
LD-400-C |
360~430 |
14.2 |
25 |
Brown |
|
LD-500-C |
470~530 |
19.2 |
25 |
Red |
|
LD-600-C |
530~650 |
22.6 |
25 |
Gray |
|
LD-700-C |
650~700 |
26 |
25 |
Yellow |
|
LD-850-C |
700~850 |
33.6 |
25 |
Khaki |
|
LD-1000-C |
850~1000 |
46 |
25 |
Dark Green |
|
|
||||
|
LD-150-A |
130~160 |
3.5 |
40 |
Blue |
|
LD-200-A |
160~210 |
4.9 |
40 |
Brown |
|
LD-300-A |
270~310 |
6.9 |
40 |
Orange |
|
LD-350-A |
340~360 |
8.6 |
40 |
Gray |
|
LD-450-A |
420~460 |
11.9 |
40 |
Red |
|
LD-650-A |
630~670 |
16.2 |
40 |
Green |
|
LD-850-A |
680~850 |
21.3 |
40 |
Dark Green |
|
LD-1000-A |
850~1100 |
26.6 |
40 |
Yellow |
