Feature:

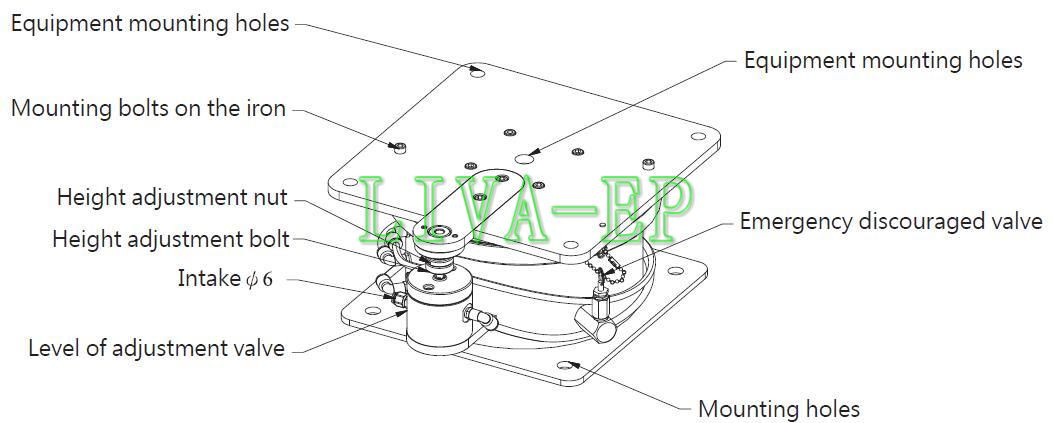

★TheLIVA VC series pneumatic vibration isolation system uses servo controlled air springs.。
★ Minimal settling time with optimum damping and correct valve gain.
★Vertical adjustable damping.
★Support payloads from200 kg to 2000 kg.
★Per isolator Valve re-leveling accuracies to ±0.02 mm.
★Easily integrated into machine designs.
Applications:Metrology Instruments、Electron Microscopes、Coordinate Measuring Machines、Precision Manufacturing Equipment、Sensitive Optical Laboratory Equipment、Environmental Test Equipment、Inspection and Calibration Equipment、Specialized Isolated Foundations
|
Type |

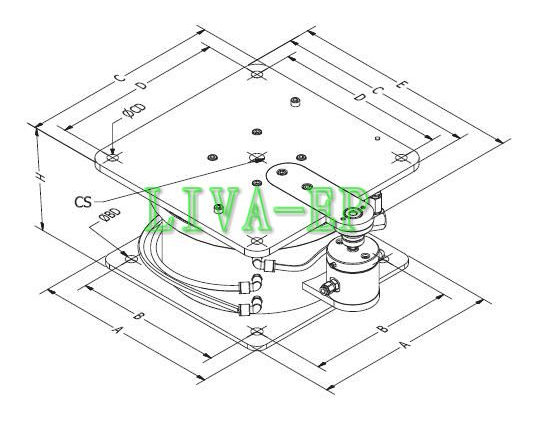

Dimensions（mm) |
Capacity KG |
||||||||
|
A |
B |
C |
D |
E |
H |
CS |
CD |
BD |
||
|
LIVA-200-VC |
140 |
115 |
160 |
135 |
202 |
147 |
M10 |
9 |
11 |
100~220 |
|
LIVA-400-VC |
160 |
125 |
190 |
150 |
237 |
147 |
M12 |
12 |
12 |
200~480 |
|
LIVA-700-VC |
200 |
160 |
220 |
180 |
267 |
147 |
M12 |
12 |
12 |
400~720 |
|
LIVA-1200-VC |
250 |
200 |
270 |
230 |
318 |
147 |
M16 |
14 |
14 |
900~1250 |
|
LIVA-2000-VC |
350 |
300 |
380 |
340 |
425 |
147 |
M16 |
14 |
14 |
1200~2500 |
