Feature:
★ Rubber and iron pieces by special treatment, strong bond.
★The Simple structure of the PDR rubber mount make it easy to install.
★ Use of natural rubber material, solid structure, good weather resistance. Rubber hardness 40,60,75, other hardness and size can be customized.
★ while the frequency of the vibration is under 15Hz(900RPM),this mount can absorb 90% of the vibration .
★ The load range from 12KG to 1200KG
Applications:
★Ruggedized installations、Industrial machinery、Generators、Blowers, pumps, and compressors、Condensers
|

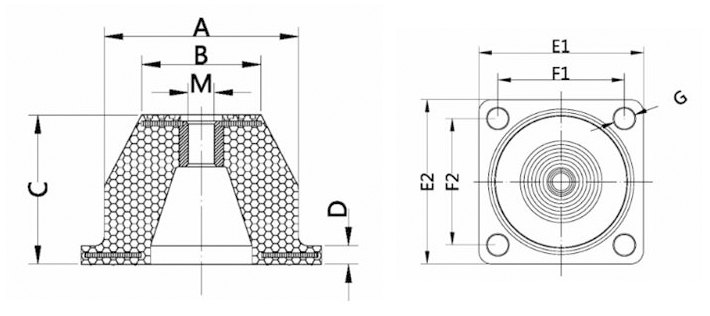

型号 |
尺寸（mm) |
最佳载荷KG |
最佳压缩量mm |
|||||||||
|
A |
B |
C |
D |
E |
F |
G |
M |
40° |
60° |
75° |
||
|
LW-10060 |
86 |
58 |
60 |
10 |
100 |
76 |
12 |
12 |
60 |
90 |
130 |
5 |
|
LW-13080 |
105 |
64.5 |
80 |
10 |
130 |
100 |
16 |
16 |
110 |
190 |
235 |
5 |
|
LW-180100 |
156 |
100 |
100 |
10 |
180 |
148 |
17 |
16 |
190 |
275 |
410 |
5 |
