Feature:
★Superior safety.
★Weather resistant finish.
★Heavy-duty vibration isolation.
★Rubber used shock-absorbing, oil-resistant natural rubber.
★ Wide temperature range: -40°C～120°C.
Applications:
★Motors、Engine、Generators、Transformer、Electronic facilities、On-board equipment
Custom sizes and loads can be customized according to your needs
|

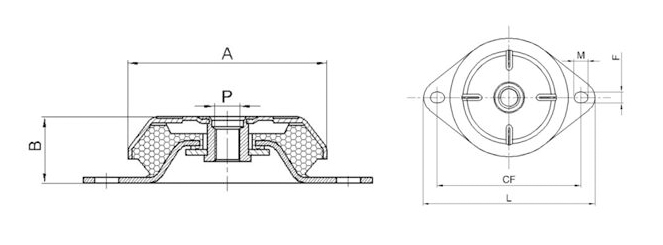

Type |
Dimensions（mm） |
Spring Rate KG/mm |
Optimum reduction mm |
Capacity KG |
||||||
|
L |
CF |
A |
B |
P |
F*M |
t |
||||
|
LRN-100 |
110 |
89 |
63 |
30 |
M8/M10 |
9*14 |
2.5 |
52 |
2.3 |
50~120 |
|
LRN-200 |
135 |
110 |
78 |
30 |
M10/M12 |
12*9 |
3 |
117 |
2.3 |
108~267 |
|
LRN-300 |
150 |
123.5 |
92 |
35 |
M10/M12 |
10*15 |
3 |
91 |
3.5 |
175~315 |
|
LRN-500 |
175 |
143 |
106 |
38 |
M14/M16 |
13*19 |
4 |
129 |
3.5 |
315~450 |
|
LRN-700 |
192 |
156 |
125 |
43 |
M16/M18 |
14.5*20 |
4 |
200 |
4 |
450~780 |
|
LRN-1100 |
218 |
182 |
150 |
50 |
M18/M20 |
14*18 |
4 |
183 |
6 |
750~1100 |
