Feature:
★Reduction of structure-borne noise.
★Reduction of vibration from rotating or reciprocating machinery
★Sturdy, reliable construction.
★Reduce effects of misalignment and distortion.
★Available in a wide load range.
★Low cost.
★Prevent shock and vibration damage to sensitive equipment.
★Resist oil, ozone and caustic materials.
★ Wide temperature range: -40°C～120°C.
Applications:
HVAC equipment、Relays and control panels、Pumps and Compressors、Machinery
|

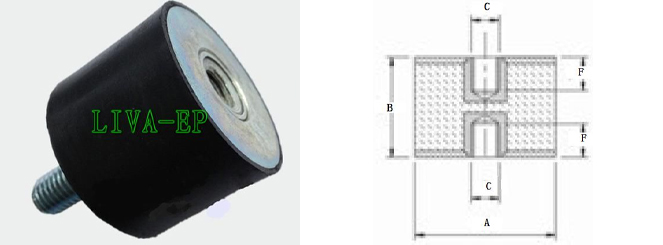

Type |
Dimensions (mm) |
Capacity KG |
Optimum reductionmm |
||||
|
A |
B |
C |
E |
40° |
60° |
||
|
LRB-E08*08 |
8 |
8 |
M3 |
6∕10 |
4 |
8 |
1.5 |
|
LRB-E10*10 |
10 |
10 |
M3/M4 |
6∕10 |
5 |
10 |
2 |
|
LRB-E10*15 |
10 |
15 |
M3/M4 |
6∕10 |
5 |
10 |
2 |
|
LRB-E15*10 |
15 |
10 |
M4/M5 |
10∕12/15 |
10 |
18 |
2 |
|
LRB-E15*15 |
15 |
15 |
M4/M5 |
10∕12/15 |
10 |
18 |
2 |
|
LRB-E15*20 |
15 |
20 |
M4/M5 |
10∕12/15 |
10 |
18 |
2 |
|
LRB-E15*30 |
15 |
30 |
M4/M5 |
10∕12/15 |
10 |
18 |
2 |
|
LRB-E20*08 |
20 |
8 |
M6 |
8∕10/16 |
10 |
20 |
1.5 |
|
LRB-E20*10 |
20 |
10 |
M6 |
8∕10/16 |
10 |
20 |
1.5 |
|
LRB-E20*15 |
20 |
15 |
M6 |
8∕10/16 |
13 |
25 |
2 |
|
LRB-B20*20 |
20 |
20 |
M6 |
8∕10/16 |
13 |
25 |
2 |
|
LRB-E20*25 |
20 |
25 |
M6 |
8∕10/16 |
15 |
28 |
2 |
|
LRB-E20*30 |
20 |
30 |
M6 |
8∕10/16 |
22 |
35 |
2.5 |
|
LRB-E25*15 |
25 |
15 |
M6/M8 |
10∕15/23 |
17 |
33 |
2 |
|
LRB-E25*20 |
25 |
20 |
M6/M8 |
10∕15/23 |
17 |
33 |
2 |
|
LRB-E25*25 |
25 |
25 |
M6/M8 |
10∕15/23 |
17 |
33 |
2 |
|
LRB-E25*30 |
25 |
30 |
M6/M8 |
10∕15/23 |
21 |
41 |
2.5 |
|
LRB-E30*15 |
30 |
15 |
M8 |
16∕20/23 |
22 |
40 |
2 |
|
LRB-E30*20 |
30 |
20 |
M8 |
16∕20/23 |
22 |
40 |
2 |
|
LRB-E30*25 |
30 |
25 |
M8 |
16∕20/23 |
22 |
40 |
2 |
|
LRB-E30*30 |
30 |
30 |
M8 |
16∕20/23 |
28 |
50 |
2.5 |
|
LRB-E30*40 |
30 |
40 |
M8 |
16∕20/23 |
28 |
50 |
2.5 |
|
LRB-E40*20 |
40 |
20 |
M8/M10 |
23∕27 |
26 |
48 |
2 |
|
LRB-E40*25 |
40 |
25 |
M8/M10 |
23∕27 |
26 |
48 |
2 |
|
LRB-E40*30 |
40 |
30 |
M8/M10 |
23∕27 |
32 |
60 |
2.5 |
|
LRB-E40*40 |
40 |
40 |
M8/M10 |
23∕27 |
38 |
72 |
3 |
|
LRB-E50*25 |
50 |
25 |
M10/M12 |
23∕27/32 |
30 |
56 |
2 |
|
LRB-E50*30 |
50 |
30 |
M10/M12 |
23∕27/32 |
38 |
70 |
2.5 |
|
LRB-E50*35 |
50 |
35 |
M10/M12 |
23∕27/32 |
38 |
70 |
2.5 |
|
LRB-E50*40 |
50 |
40 |
M10/M12 |
23∕27/32 |
45 |
85 |
3 |
|
LRB-E50*45 |
50 |
45 |
M10/M12 |
23∕27/32 |
45 |
85 |
3 |
|
LRB-E50*50 |
50 |
50 |
M10/M12 |
23∕27/32 |
45 |
85 |
3 |
|
LRB-E60*30 |
60 |
30 |
M10/M12 |
27∕32/37 |
60 |
110 |
2.5 |
|
LRB-E60*35 |
60 |
35 |
M10/M12 |
27∕32/37 |
60 |
110 |
2.5 |
|
LRB-E60*40 |
60 |
40 |
M10/M12 |
27∕32/37 |
60 |
110 |
2.5 |
|
LRB-E60*45 |
60 |
45 |
M10/M12 |
27∕32/37 |
72 |
132 |
3 |
|
LRB-E60*50 |
60 |
50 |
M10/M12 |
27∕32/37 |
72 |
132 |
3 |
|
LRB-E60*60 |
60 |
60 |
M10/M12 |
27∕32/37 |
72 |
132 |
3 |
|
LRB-E70*30 |
70 |
30 |
M12/M16 |
37∕42 |
110 |
200 |
2.5 |
|
LRB-E70*40 |
70 |
40 |
M12/M16 |
37∕42 |
135 |
240 |
3 |
|
LRB-E70*50 |
70 |
50 |
M12/M16 |
37∕42 |
135 |
240 |
3 |
|
LRB-E70*55 |
70 |
55 |
M12/M16 |
37∕42 |
160 |
280 |
3.5 |
|
LRB-E70*65 |
70 |
65 |
M12/M16 |
37∕42 |
160 |
280 |
3.5 |
|
LRB-E75*40 |
75 |
40 |
M12/M16 |
37∕42 |
150 |
270 |
3 |
|
LRB-E75*45 |
75 |
45 |
M12/M16 |
37∕42 |
150 |
270 |
3 |
|
LRB-E75*50 |
75 |
50 |
M12/M16 |
37∕42 |
150 |
270 |
3 |
|
LRB-E75*55 |
75 |
55 |
M12/M16 |
37∕42 |
175 |
315 |
3.5 |
|
LRB-E80*40 |
80 |
40 |
M12/M16 |
42∕47 |
150 |
280 |
3 |
|
LRB-E80*50 |
80 |
50 |
M12/M16 |
42∕47 |
175 |
280 |
3 |
|
LRB-E80*60 |
80 |
60 |
M12/M16 |
42∕47 |
205 |
325 |
3.5 |
|
LRB-E80*80 |
80 |
80 |
M12/M16 |
42∕47 |
235 |
370 |
4 |
|
LRB-E100*40 |
100 |
40 |
M16 |
42∕47 |
230 |
420 |
3 |
|
LRB-E100*45 |
100 |
45 |
M16 |
42∕47 |
230 |
420 |
3 |
|
LRB-E100*50 |
100 |
50 |
M16 |
42∕47 |
230 |
420 |
3 |
|
LRB-E100*55 |
100 |
55 |
M16 |
42∕47 |
270 |
490 |
3.5 |
|
LRB-E100*60 |
100 |
60 |
M16 |
42∕47 |
310 |
560 |
4 |
|
LRB-E100*75 |
100 |
75 |
M16 |
42∕47 |
310 |
560 |
4 |
|
LRB-E100*100 |
100 |
100 |
M16 |
42∕47 |
390 |
700 |
5 |
|
LRB-E150*75 |
150 |
75 |
M16/M20 |
42∕47 |
750 |
1400 |
5 |
