Feature:
★Reduction of structure-borne noise.
★Reduction of vibration from rotating or reciprocating machinery
★Sturdy, reliable construction.
★Reduce effects of misalignment and distortion.
★Available in a wide load range.
★Low cost.
★Prevent shock and vibration damage to sensitive equipment.
★Resist oil, ozone and caustic materials.
★ Wide temperature range: -40°C～120°C.
Applications:
HVAC equipment、Relays and control panels、Pumps and Compressors、Machinery
|

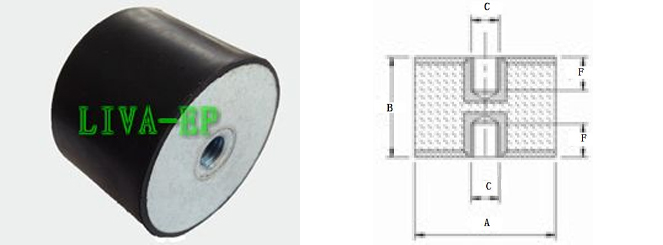

Type |
Dimensions (mm) |
Capacity KG |
Optimum reduction mm |
|||
|
A |
B |
C |
40° |
60° |
||
|
LRB-D10*10 |
10 |
10 |
M3/M4 |
5 |
10 |
2 |
|
LRB-D10*15 |
10 |
15 |
M3/M4 |
5 |
10 |
2 |
|
LRB-D15*15 |
15 |
15 |
M4/M5 |
10 |
18 |
2 |
|
LRB-D15*20 |
15 |
20 |
M4/M5 |
10 |
18 |
2 |
|
LRB-D15*30 |
15 |
30 |
M4/M5 |
10 |
18 |
2 |
|
LRB-D20*15 |
20 |
15 |
M6 |
13 |
25 |
2 |
|
LRB-D20*20 |
20 |
20 |
M6 |
13 |
25 |
2 |
|
LRB-D20*25 |
20 |
25 |
M6 |
15 |
28 |
2 |
|
LRB-D20*30 |
20 |
30 |
M6 |
22 |
35 |
2.5 |
|
LRB-D25*20 |
25 |
20 |
M6/M8 |
17 |
33 |
2 |
|
LRB-D25*25 |
25 |
25 |
M6/M8 |
17 |
33 |
2 |
|
LRB-D25*30 |
25 |
30 |
M6/M8 |
21 |
41 |
2.5 |
|
LRB-D30*20 |
30 |
20 |
M8 |
22 |
40 |
2 |
|
LRB-D30*25 |
30 |
25 |
M8 |
22 |
40 |
2 |
|
LRB-D30*30 |
30 |
30 |
M8 |
28 |
50 |
2.5 |
|
LRB-D30*40 |
30 |
40 |
M8 |
28 |
50 |
2.5 |
|
LRB-D40*25 |
40 |
25 |
M8/M10 |
26 |
48 |
2 |
|
LRB-D40*30 |
40 |
30 |
M8/M10 |
32 |
60 |
2.5 |
|
LRB-D40*40 |
40 |
40 |
M8/M10 |
38 |
72 |
3 |
|
LRB-D50*25 |
50 |
25 |
M10/M12 |
30 |
56 |
2 |
|
LRB-D50*30 |
50 |
30 |
M10/M12 |
38 |
70 |
2.5 |
|
LRB-D50*35 |
50 |
35 |
M10/M12 |
38 |
70 |
2.5 |
|
LRB-D50*40 |
50 |
40 |
M10/M12 |
45 |
85 |
3 |
|
LRB-D50*45 |
50 |
45 |
M10/M12 |
45 |
85 |
3 |
|
LRB-D50*50 |
50 |
50 |
M10/M12 |
45 |
85 |
3 |
|
LRB-D60*30 |
60 |
30 |
M10/M12 |
60 |
110 |
2.5 |
|
LRB-D60*35 |
60 |
35 |
M10/M12 |
60 |
110 |
2.5 |
|
LRB-D60*40 |
60 |
40 |
M10/M12 |
60 |
110 |
2.5 |
|
LRB-D60*45 |
60 |
45 |
M10/M12 |
72 |
132 |
3 |
|
LRB-D60*50 |
60 |
50 |
M10/M12 |
72 |
132 |
3 |
|
LRB-D60*60 |
60 |
60 |
M10/M12 |
72 |
132 |
3 |
|
LRB-D70*40 |
70 |
40 |
M12/M16 |
135 |
240 |
3 |
|
LRB-D70*50 |
70 |
50 |
M12/M16 |
135 |
240 |
3 |
|
LRB-D70*55 |
70 |
55 |
M12/M16 |
160 |
280 |
3.5 |
|
LRB-D70*65 |
70 |
65 |
M12/M16 |
160 |
280 |
3.5 |
|
LRB-D75*40 |
75 |
40 |
M12/M16 |
150 |
270 |
3 |
|
LRB-D75*45 |
75 |
45 |
M12/M16 |
150 |
270 |
3 |
|
LRB-D75*50 |
75 |
50 |
M12/M16 |
150 |
270 |
3 |
|
LRB-D75*55 |
75 |
55 |
M12/M16 |
175 |
315 |
3.5 |
|
LRB-D80*40 |
80 |
40 |
M12/M16 |
150 |
280 |
3 |
|
LRB-D80*50 |
80 |
50 |
M12/M16 |
175 |
280 |
3 |
|
LRB-D80*60 |
80 |
60 |
M12/M16 |
205 |
325 |
3.5 |
|
LRB-D80*80 |
80 |
80 |
M12/M16 |
235 |
370 |
4 |
|
LRB-D100*30 |
100 |
30 |
M16 |
190 |
350 |
2.5 |
|
LRB-D100*40 |
100 |
40 |
M16 |
230 |
420 |
3 |
|
LRB-D100*45 |
100 |
45 |
M16 |
230 |
420 |
3 |
|
LRB-D100*50 |
100 |
50 |
M16 |
230 |
420 |
3 |
|
LRB-D100*55 |
100 |
55 |
M16 |
270 |
490 |
3.5 |
|
LRB-D100*60 |
100 |
60 |
M16 |
310 |
560 |
4 |
|
LRB-D100*75 |
100 |
75 |
M16 |
310 |
560 |
4 |
|
LRB-D100*100 |
100 |
100 |
M16 |
390 |
700 |
5 |
|
LRB-D150*75 |
150 |
75 |
M16/M20 |
750 |
1400 |
5 |
