Feature:
★Air-cushioned isolation with liquid-filled dampers.
★Low natural frequency (3 ~ 5 Hz at operating load).
★High deflection.。
★ Neoprene padded bottom base.
★Heavy wall construction.
★High lateral stability.
★Maintenance free.
★Extends machinery life.
★Wide load range available.
★Combined resiliency and air prevents high static deflection.
Applications:Air compressors、CMM machinery、Forging hammers、Industrial equipment、tools and machinery、Sensitive measuring equipment
|
Type |

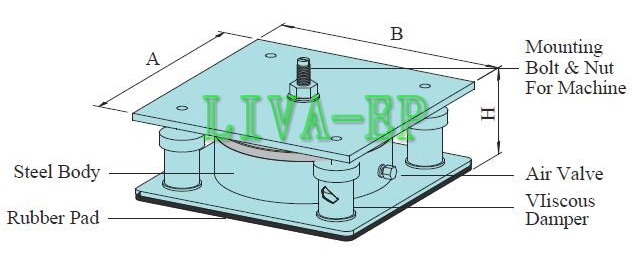

Dimensions（mm） |
Capacity（KG) |
Natural Frequency（HZ) |
Mounting Bolt CS*L |
||
|
A |
B |
H |
||||
|
LIVA-400-VB |
235 |
235 |
120 |
200~400 |
3~5 |
M12-110L |
|
LIVA-700-VB |
260 |
260 |
120 |
400~700 |
3~5 |
M12-110L |
|
LIVA-900-VB |
270 |
270 |
120 |
700~900 |
3~5 |
M16-110L |
|
LIVA-1200-VB |
300 |
300 |
120 |
900~1200 |
3~5 |
M16-110L |
|
LIVA-1600-VB |
350 |
350 |
120 |
1200~1600 |
3~5 |
M16-110L |
|
LIVA-2000-VB |
390 |
390 |
120 |
1600~2000 |
3~5 |
M16-110L |
|
LIVA-2800-VB |
450 |
450 |
120 |
2000~2800 |
3~5 |
M20-150L |
|
LIVA-3500-VB |
500 |
500 |
120 |
2800~3500 |
3~5 |
M20-150L |
|
LIVA-6000-VB |
575 |
575 |
120 |
3500~6000 |
3~5 |
M24-150L |
|
LIVA-9000-VB |
650 |
650 |
120 |
6000~9000 |
3~5 |
M24-150L |
