Feature:
★ Rubber and iron pieces by special treatment, strong bond.
★The Simple structure of the PDR rubber mount make it easy to install.
★ Use of natural rubber material, solid structure, good weather resistance. Rubber hardness 40,60,75, other hardness and size can be customized.
★ while the frequency of the vibration is under 15Hz(900RPM),this mount can absorb 90% of the vibration .
★ The load range from 12KG to 1200KG
Applications:
★Ruggedized installations、Industrial machinery、Generators、Blowers, pumps, and compressors、Condensers
|

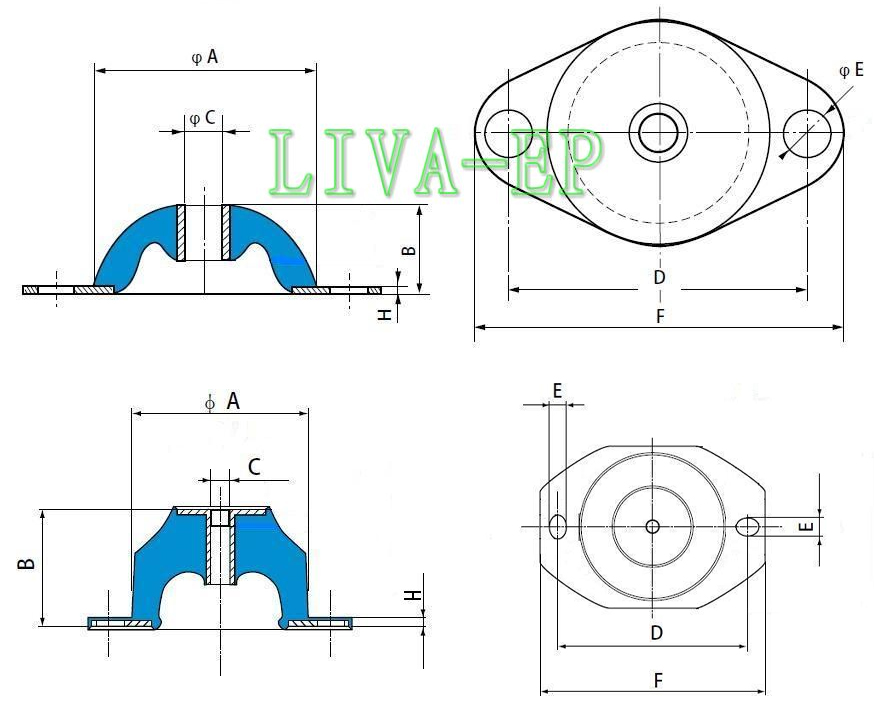

Type |
Dimensions mm |
Capacity KG |
||||||||
|
A |
B |
C |
D |
E |
F |
H |
40° |
60° |
75° |
|
|
LPS-40 |
40 |
20 |
M6 |
52 |
6/6*6 |
64 |
6.3 |
4 |
8 |
11 |
|
LPS-60 |
60 |
24 |
M6 |
76 |
6/6*8 |
90 |
6.5 |
15 |
25 |
45 |
|
LPS-80 |
80 |
27 |
M8 |
100 |
8/8*12 |
120 |
8.2 |
75 |
110 |
150 |
|
LPS-100 |
100 |
28 |
M10 |
124 |
10/10*16 |
148 |
10 |
90 |
160 |
220 |
|
LPS-150 |
150 |
39 |
M16 |
182 |
12/12*20 |
214 |
12 |
130 |
250 |
350 |
|
LPS-200 |
200 |
44 |
M18 |
240 |
14/14*24 |
280 |
14.5 |
500 |
825 |
1250 |
