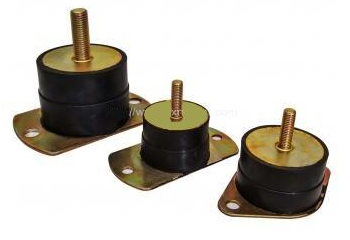

Feature:
★ The upper and lower steel plate design, the shock absorber uniform force, stability, shock absorption effect.
★Wide-range load with low natural frequency.
★Resist oil, ozone and caustic materials.
★Quick and easy installation.
★Wide temperature range: -40°C～120°C.
Applications:
★Ruggedized installations、Industrial machinery、Generators、Blowers, pumps, and compressors、Condensers
|
Type |

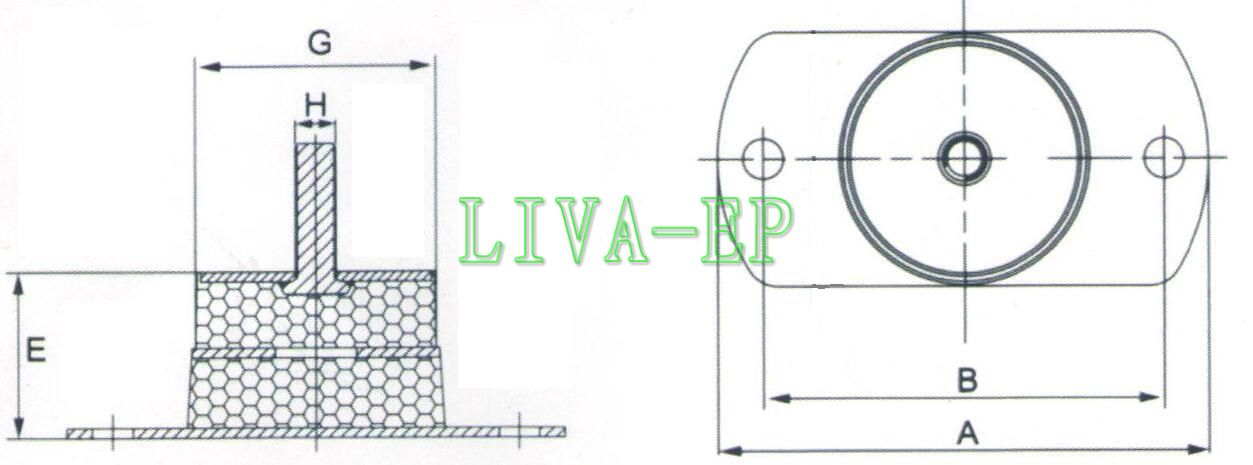

Dimensions mm |
Rubber hardness |
Spring Rate KG/mm |
Capacity KG |
Optimum reduction mm |
||||
|
A |
B |
E |
G |
H |
|||||
|
LM-70 |
147 |
120 |
50 |
70 |
M12 |
40 |
60 |
325 |
5 |
|
60 |
83 |
413 |
5 |
||||||
|
70 |
103 |
515 |
5 |
||||||
|
LM-88 |
140 |
112 |
50 |
88 |
M12 |
40 |
55 |
440 |
8 |
|
60 |
90 |
720 |
8 |
||||||
|
70 |
130 |
1040 |
8 |
||||||
|
LM-100 |
174 |
144 |
80 |
100 |
M20 |
40 |
50 |
600 |
12 |
|
60 |
90 |
1080 |
12 |
||||||
|
70 |
145 |
1740 |
12 |
||||||
|
LM-124 |
215 |
177 |
64 |
124 |
M20 |
40 |
85 |
850 |
10 |
|
60 |
140 |
1400 |
10 |
||||||
|
70 |
220 |
2200 |
10 |
||||||
|
LM-152 |
232 |
190 |
80 |
152 |
M20 |
40 |
105 |
1260 |
12 |
|
60 |
200 |
2400 |
12 |
||||||
|
70 |
320 |
3840 |
12 |
||||||
