Feature：
★Air-cushioned isolation，The body adopts Neoprene Rubber to ensure optimal air tightness.
★Ultra-low 3 ~ 5HZ natural frequency, suitable for all high and low frequency vibration equipment.
★Unique air isolation principle, vibration isolation efficiency over 98%.
★Maximum pressure of 4.5 KG/C㎡, JISD - 4101 air cushion pressure test standard.
Applications：Air compressors、CMM machinery、Forging hammers、Industrial equipment、tools and machinery、Sensitive measuring equipment
|

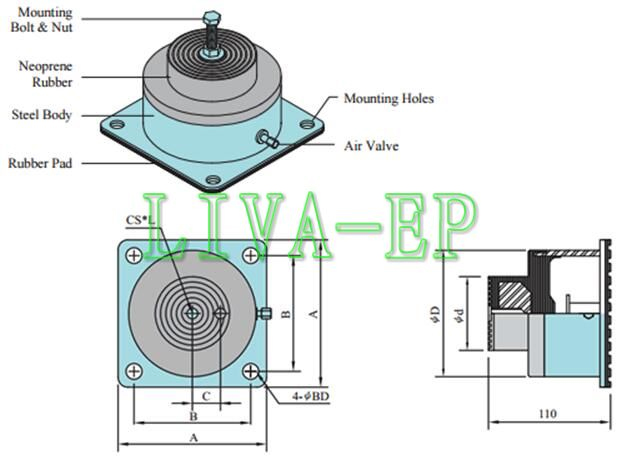

Part Number |
Dimension（mm） |
Load Range (Kg) |
Mounting Bolt |
|||||
|
A |
B |
C |
￠D |
￠d |
￠BD |
|||
|
LIVA-100-VA |
125 |
100 |
0 |
100 |
50 |
12 |
20~100 |
M12-40L |
|
LIVA-200-VA |
125 |
100 |
0 |
100 |
60 |
12 |
100~200 |
M12-50L |
|
LIVA-400-VA |
160 |
125 |
0 |
132 |
76 |
12 |
200~400 |
M12-60L |
|
LIVA-700-VA |
200 |
160 |
0 |
164 |
110 |
12 |
400~700 |
M12-50L |
|
LIVA-900-VA |
200 |
160 |
0 |
190 |
130 |
14 |
700~900 |
M16-110L |
|
LIVA-1200-VA |
250 |
200 |
0 |
212 |
150 |
14 |
900~1200 |
M16-110L |
|
LIVA-1600-VA |
300 |
250 |
0 |
263 |
190 |
14 |
1200~1600 |
M16-110L |
|
LIVA-2000-VA |
350 |
300 |
0 |
314 |
240 |
14 |
1600~2000 |
M16-110L |
|
LIVA-3500-VA |
470 |
410 |
90 |
422 |
330 |
18 |
2000~3500 |
M20-100L |
