Besondere Merkmale
Niedrige natürliche Frequenz.
Rutschfeste Neoprenmatte.
Rahmenbeschichtung, radiologische Behandlung.
Schnelle und einfache Installation.
Schweres Schwingungsisolationsgerät.
ED und Ofenlack Finish für den Außeneinsatz im Frühjahr.
Schnelle und einfache Installation.
Schweres Schwingungsisolationsgerät.
Witterungsbeständiges Finish.
Der Federdurchmesser darf nicht weniger als das 0,8-fache der Druckhöhe der Feder unter der Bemessungslast betragen. Der minimale Zusatzhub der Feder zum Festkörper muss 50% der tatsächlichen Durchbiegung betragen.
Applications:

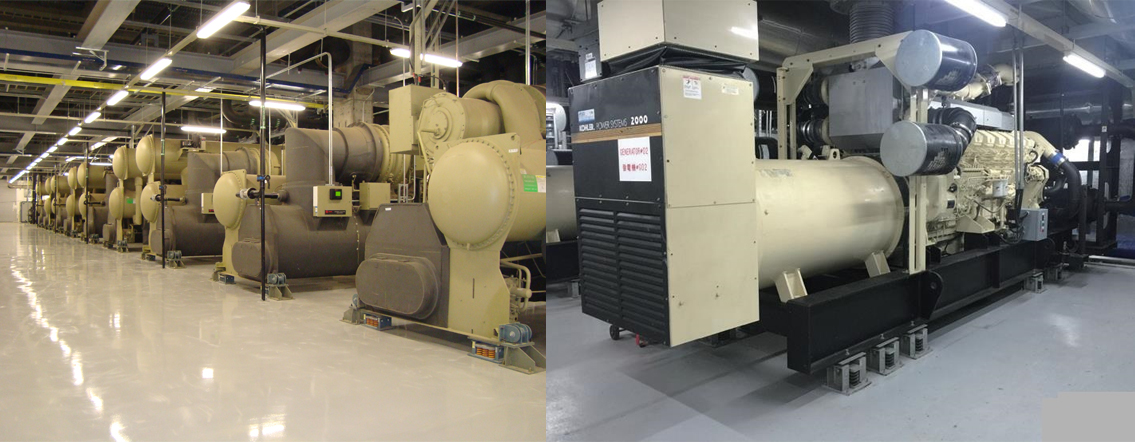

Schwere Motorräder, Wasserpumpen, Kühler, Kessel, Kühltürme, Generatoren.
|
Typ |
AbmessungenAbmessungen（mm） |
MU Bolzenmm |
Typ |
Abmessungen（mm） |
MU Bolzen mm |
||||||||||||
|
L |
W |
L1 |
W1 |
A |
B |
H |
BD |
L |
W |
L1 |
W1 |
A |
B |
H |
BD |
||
|
LA-1 |
260 |
100 |
210 |
100 |
230 |
0 |
195 |
16 |
LAD-1 |
280 |
125 |
280 |
125 |
250 |
95 |
225 |
16 |
|
LA-2 |
205 |
220 |
205 |
125 |
165 |
180 |
200 |
16 |
LAD-2 |
280 |
220 |
280 |
220 |
250 |
190 |
225 |
16 |
|
LA-4 |
270 |
190 |
270 |
150 |
230 |
150 |
200 |
16 |
LAD-4 |
380 |
210 |
380 |
210 |
350 |
180 |
225 |
16 |
|
LA-6 |
400 |
170 |
400 |
170 |
370 |
140 |
197 |
18 |
LAS-1 |
310 |
230 |
310 |
230 |
260 |
180 |
290 |
18 |
|
LA-9 |
420 |
250 |
420 |
250 |
384 |
214 |
197 |
18 |
LAS-2 |
320 |
280 |
320 |
280 |
270 |
230 |
305 |
18 |
|
LAC-1 |
260 |
100 |
210 |
100 |
230 |
0 |
195 |
16 |
LAS-4 |
440 |
310 |
440 |
310 |
390 |
260 |
305 |
18 |
|
LAC-2 |
205 |
220 |
205 |
125 |
165 |
180 |
200 |
16 |
LAF-1 |
370 |
260 |
370 |
200 |
320 |
210 |
390 |
20 |
|
LAC-4 |
270 |
190 |
270 |
150 |
230 |
150 |
200 |
16 |
LAF-1 |
370 |
260 |
370 |
200 |
320 |
210 |
430 |
20 |
|
Type |
Part numbers |
Rated Capacity KG |
Spring Rate KG/mm |
Rated Defl. mm |
Color Code |
|
LAC-1 |
LAC-1-150 |
130~160 |
3.5 |
40 |
Blue |
|
LAC-1-200 |
160~210 |
4.9 |
40 |
Brown |
|
|
LAC-1-350 |
340~360 |
8.6 |
40 |
Gray |
|
|
LAC-1-450 |
420~460 |
11.9 |
40 |
Red |
|
|
LAC-1-650 |
630~670 |
16.2 |
40 |
Green |
|
|
LAC-1-700 |
680~720 |
18.3 |
40 |
Purple |
|
|
LAC-1-1000 |
720~1000 |
26.6 |
40 |
Yellow |
|
Type |
Part numbers |
Rated Capacity KG |
Spring Rate KG/mm |
Rated Defl. mm |
Color Code |
|
LAC-2 |
LAC-2-900 |
840~920 |
23.8 |
40 |
Red |
|
LAC-2-1300 |
1260~1340 |
32.4 |
40 |
Green |
|
|
LAC-2-1400 |
1360~1440 |
36.6 |
40 |
Purple |
|
|
LAC-2-2000 |
1700~2000 |
53.2 |
40 |
Yellow |
|
|
LAC-4 |
LAC-4-800 |
760~840 |
19.6 |
40 |
Brown |
|
LAC-4-1200 |
1080~1240 |
27.6 |
40 |
橙 |
|
|
LAC-4-1400 |
1360~1440 |
34.4 |
40 |
Gray |
|
|
LAC-4-1800 |
1680~1840 |
47.6 |
40 |
Red |
|
|
LAC-4-2600 |
2520~2680 |
64.8 |
40 |
Green |
|
|
LAC-4-2800 |
2720~2880 |
73.2 |
40 |
Purple |
|
|
LAC-4-4000 |
3800~4000 |
100.0 |
40 |
Yellow |
|
|
LAD-1 |
LAD-1-100 |
90~120 |
2.0 |
50 |
Yellow |
|
LAD-1-150 |
120~160 |
3.0 |
50 |
White |
|
|
LAD-1-250 |
160~260 |
5.0 |
50 |
Green |
|
|
LAD-1-350 |
320~360 |
7.0 |
50 |
Red |
|
|
LAD-1-400 |
360~420 |
8.0 |
50 |
White/Black |
|
|
LAD-1-450 |
420~470 |
9.0 |
50 |
Brown |
|
|
LAD-1-500 |
470~520 |
10.0 |
50 |
Green/Black |
|
|
LAD-1-600 |
570~620 |
12.0 |
50 |
Gray |
|
|
LAD-1-750 |
700~750 |
15.2 |
50 |
Khaki |
|
|
LAD-1-850 |
750~870 |
17.0 |
50 |
Gray/Black |
|
|
LAD-1-1000 |
870~1050 |
20.2 |
50 |
Khaki/Black |
|
|
LAD-2 |
LAD-2-1200 |
1050~1250 |
24.0 |
50 |
Gray |
|
LAD-2-14OO |
1250~1500 |
30.2 |
50 |
Khaki |
|
|
LAD-2-1700 |
1400~1700 |
34.0 |
50 |
Gray/Black |
|
|
LAD-2-2000 |
1700~2000 |
40.4 |
50 |
Khaki/Black |
|
|
LAD-4 |
LAD-4-2400 |
2000~2400 |
48.0 |
50 |
Gray |
|
LAD-4-2800 |
2400~2800 |
60.4 |
50 |
Khaki |
|
|
LAD-4-3400 |
2800~3400 |
68.0 |
50 |
Gray/Black |
|
|
LAD-4-4000 |
3200~4000 |
80.8 |
50 |
Khaki/Black |
|
|
LAS-1 |
LAS-1-100 |
80~120 |
1.3 |
75 |
Yellow |
|
LAS-1-150 |
120~170 |
2.0 |
75 |
White |
|
|
LAS-1-250 |
170~270 |
3.3 |
75 |
Green |
|
|
LAS-1-300 |
270~320 |
4.0 |
75 |
Gray |
|
|
LAS-1-350 |
320~370 |
4.7 |
75 |
Red |
|
|
LAS-1-450 |
370~470 |
6.0 |
75 |
Blue |
|
|
LAS-1-550 |
470~570 |
7.6 |
75 |
Brown |
|
|
LAS-1-650 |
570~670 |
8.6 |
75 |
Khaki |
|
|
LAS-1-750 |
670~770 |
10.9 |
75 |
Blue/Black |
|
|
LAS-1-1000 |
750~1000 |
13.5 |
75 |
Khaki/Black |
|
|
Part numbers |
Rated Capacity KG |
Spring Rate KG/mm |
Rated Defl. mm |
Color Code |
|
LAS-2 |
LAS-2-1300 |
1100~1300 |
17.2 |
75 |
Khaki |
|
LAS-2-1500 |
1270~1550 |
21.8 |
75 |
Blue/Black |
|
|
LAS-2-2000 |
1950~2100 |
27.0 |
75 |
Khaki/Black |
|
|
LAS-4 |
LAS-4-2600 |
2300~2650 |
34.4 |
75 |
Khaki |
|
LAS-4-3000 |
2650~3100 |
43.6 |
75 |
Blue/Black |
|
|
LAS-4-4000 |
3100~41OO |
54.0 |
75 |
Khaki/Black |
|
|
LAF-1 |
LAF-1-100 |
50~100 |
1.0 |
100 |
Yellow |
|
LAF-1-150 |
100~150 |
1.5 |
100 |
White |
|
|
LAF-1-200 |
150~200 |
2.0 |
100 |
Drak Green |
|
|
LAF-1-300 |
200~300 |
3.0 |
100 |
Red |
|
|
LAF-1-350 |
300~350 |
3.5 |
100 |
Blue |
|
|
LAF-1-400 |
350~400 |
4.0 |
100 |
Yellow/Black |
|
|
LAF-1-450 |
400~450 |
4.5 |
100 |
White/Black |
|
|
LAF-1-500 |
450~500 |
5.0 |
100 |
Brown |
|
|
LAF-1-600 |
500~600 |
5.9 |
100 |
Red/Black |
|
|
LAF-1-700 |
600~700 |
7.0 |
100 |
Gray |
|
|
LAF-1-800 |
700~800 |
8.0 |
100 |
Brown/Black |
|
|
LAF-1-1000 |
800~1000 |
10.0 |
100 |
Gray/Black |
|
|
LAH-1 |
LAH-1-200 |
160~200 |
1.6 |
125 |
Drak Green |
|
LAH-1-300 |
200~300 |
2.4 |
125 |
Red |
|
|
LAH-1-350 |
300~350 |
2.8 |
125 |
Drak Green |
|
|
LAH-1-400 |
350~400 |
3.2 |
125 |
Blue |
|
|
LAH-1-450 |
400~450 |
3.6 |
125 |
Red/Black |
|
|
LAH-1-550 |
450~550 |
4.4 |
125 |
Brown |
|
|
LAH-1-700 |
550~700 |
5.2 |
125 |
Brown/Black |
|
|
LAH-1-750 |
700~750 |
6.0 |
125 |
Gray |
|
|
LAH-1-900 |
750~900 |
6.8 |
125 |
Green/Black |
|
|
LAH-1-1000 |
900~1000 |
7.9 |
125 |
Khaki |
|
|
LAH-1-1300 |
1000~1300 |
10.0 |
125 |
Drak Green |
