Fonctions spéciales
Faible fréquence naturelle.

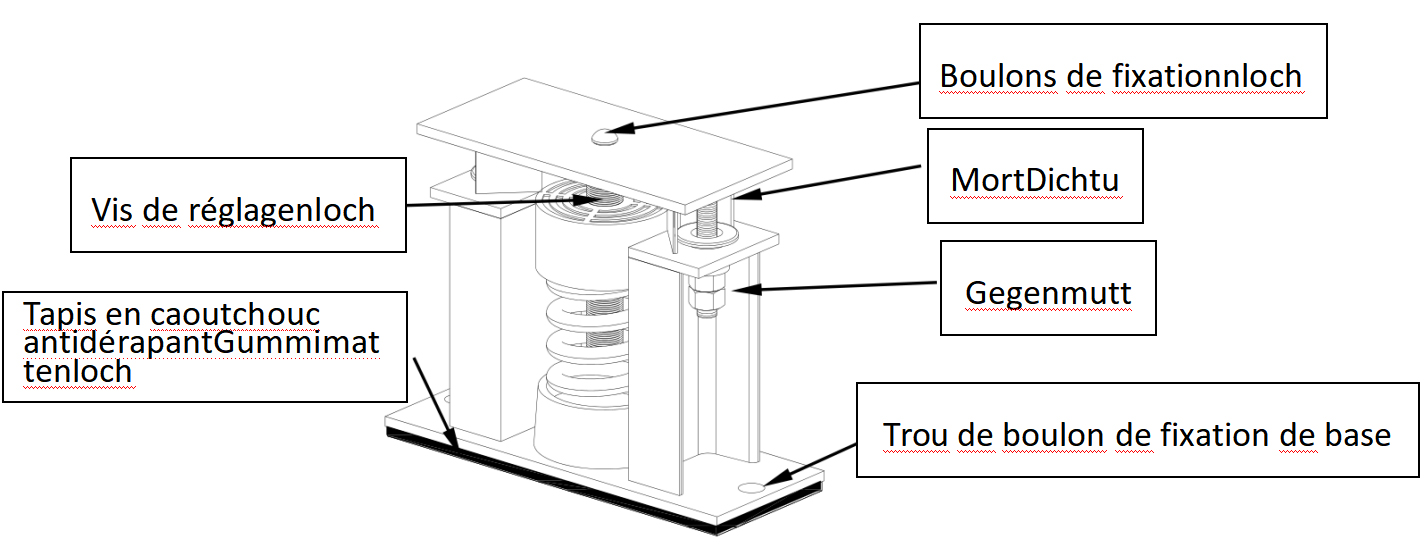

Tapis en néoprène antidérapant.
Revêtement de cadre, radiothérapie.
Installation rapide et facile.
Dispositif d'isolation contre les vibrations robuste.
Vernis ED et four pour usage extérieur au printemps.
Installation rapide et facile.
Dispositif d'isolation contre les vibrations robuste.
Finition résistante aux intempéries.
Le diamètre du ressort ne doit pas être inférieur à 0,8 fois la hauteur de pression du ressort sous la charge nominale. La course supplémentaire minimale du ressort sur le solide doit être de 50% de la déflexion réelle.
Application:

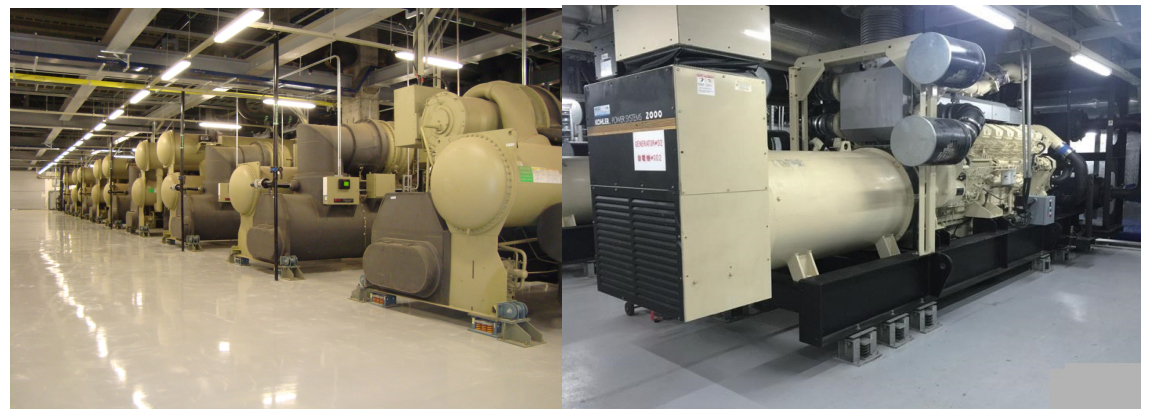

Motocyclettes lourdes, pompesàeau, refroidisseurs, chaudières, tours de refroidissement, générateurs.
|

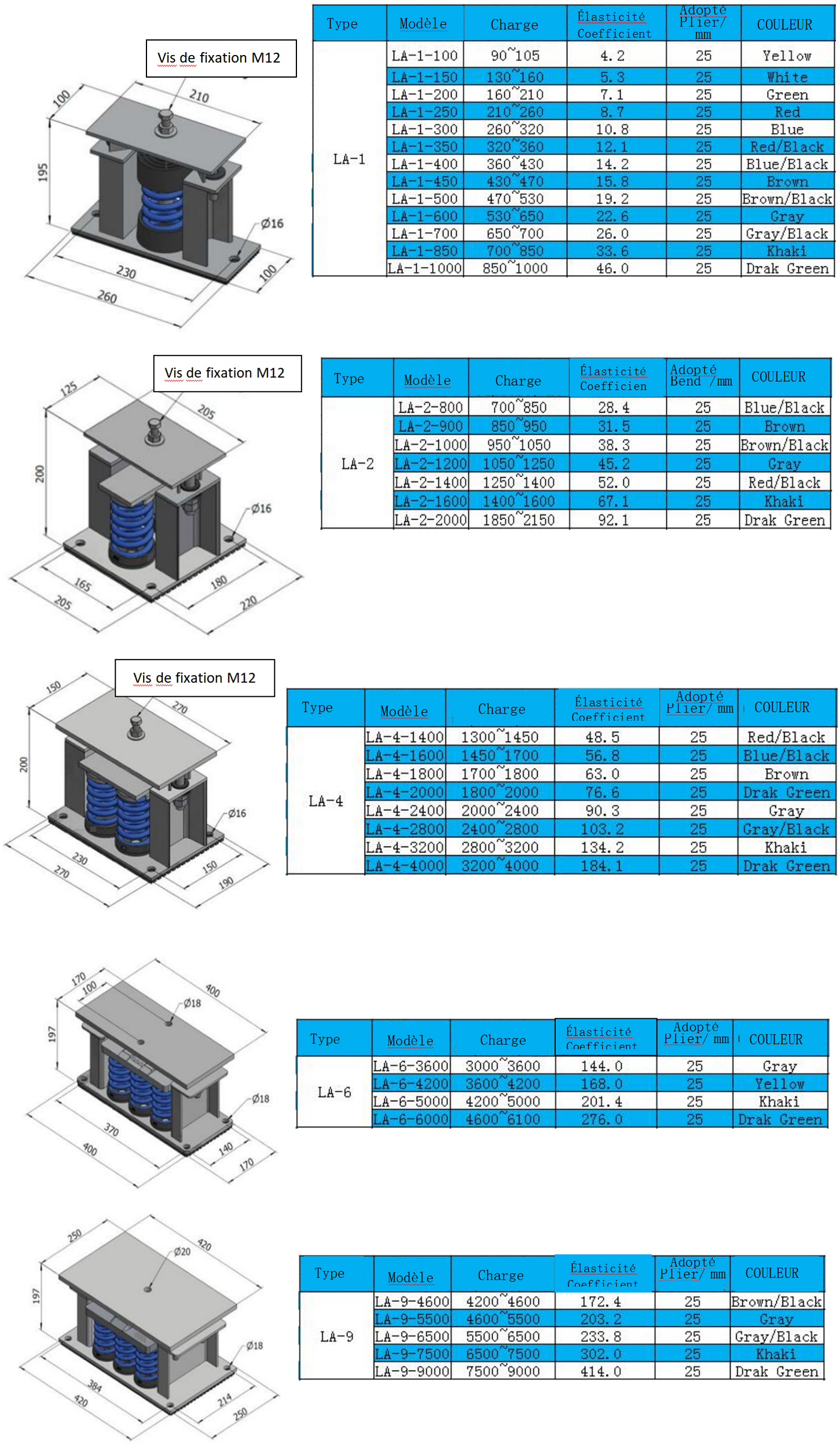

Type |
Dimensions（mm） |
MU Boltmm |
Type |
Dimensions（mm） |
MU Bolt mm |
||||||||||||
|
L |
W |
L1 |
W1 |
A |
B |
H |
BD |
L |
W |
L1 |
W1 |
A |
B |
H |
BD |
||
|
LA-1 |
260 |
100 |
210 |
100 |
230 |
0 |
195 |
16 |
LAD-1 |
280 |
125 |
280 |
125 |
250 |
95 |
225 |
16 |
|
LA-2 |
205 |
220 |
205 |
125 |
165 |
180 |
200 |
16 |
LAD-2 |
280 |
220 |
280 |
220 |
250 |
190 |
225 |
16 |
|
LA-4 |
270 |
190 |
270 |
150 |
230 |
150 |
200 |
16 |
LAD-4 |
380 |
210 |
380 |
210 |
350 |
180 |
225 |
16 |
|
LA-6 |
400 |
170 |
400 |
170 |
370 |
140 |
197 |
18 |
LAS-1 |
310 |
230 |
310 |
230 |
260 |
180 |
290 |
18 |
|
LA-9 |
420 |
250 |
420 |
250 |
384 |
214 |
197 |
18 |
LAS-2 |
320 |
280 |
320 |
280 |
270 |
230 |
305 |
18 |
|
LAC-1 |
260 |
100 |
210 |
100 |
230 |
0 |
195 |
16 |
LAS-4 |
440 |
310 |
440 |
310 |
390 |
260 |
305 |
18 |
|
LAC-2 |
205 |
220 |
205 |
125 |
165 |
180 |
200 |
16 |
LAF-1 |
370 |
260 |
370 |
200 |
320 |
210 |
390 |
20 |
|
LAC-4 |
270 |
190 |
270 |
150 |
230 |
150 |
200 |
16 |
LAF-1 |
370 |
260 |
370 |
200 |
320 |
210 |
430 |
20 |
|
Type |
Part numbers |
Rated Capacity KG |
Spring Rate KG/mm |
Rated Defl. mm |
Color Code |
|
LAC-1 |
LAC-1-150 |
130~160 |
3.5 |
40 |
Bleu |
|
LAC-1-200 |
160~210 |
4.9 |
40 |
Brun |
|
|
LAC-1-350 |
340~360 |
8.6 |
40 |
Gris |
|
|
LAC-1-450 |
420~460 |
11.9 |
40 |
Rouge |
|
|
LAC-1-650 |
630~670 |
16.2 |
40 |
Vert |
|
|
LAC-1-700 |
680~720 |
18.3 |
40 |
Purple |
|
|
LAC-1-1000 |
720~1000 |
26.6 |
40 |
Jaune |
|
Type |
Part numbers |
Rated Capacity KG |
Spring Rate KG/mm |
Rated Defl. mm |
Color Code |
|
LAC-2 |
LAC-2-900 |
840~920 |
23.8 |
40 |
Red |
|
LAC-2-1300 |
1260~1340 |
32.4 |
40 |
Green |
|
|
LAC-2-1400 |
1360~1440 |
36.6 |
40 |
Purple |
|
|
LAC-2-2000 |
1700~2000 |
53.2 |
40 |
Yellow |
|
|
LAC-4 |
LAC-4-800 |
760~840 |
19.6 |
40 |
Brown |
|
LAC-4-1200 |
1080~1240 |
27.6 |
40 |
橙 |
|
|
LAC-4-1400 |
1360~1440 |
34.4 |
40 |
Gray |
|
|
LAC-4-1800 |
1680~1840 |
47.6 |
40 |
Red |
|
|
LAC-4-2600 |
2520~2680 |
64.8 |
40 |
Green |
|
|
LAC-4-2800 |
2720~2880 |
73.2 |
40 |
Purple |
|
|
LAC-4-4000 |
3800~4000 |
100.0 |
40 |
Yellow |
|
|
LAD-1 |
LAD-1-100 |
90~120 |
2.0 |
50 |
Yellow |
|
LAD-1-150 |
120~160 |
3.0 |
50 |
White |
|
|
LAD-1-250 |
160~260 |
5.0 |
50 |
Green |
|
|
LAD-1-350 |
320~360 |
7.0 |
50 |
Red |
|
|
LAD-1-400 |
360~420 |
8.0 |
50 |
White/Black |
|
|
LAD-1-450 |
420~470 |
9.0 |
50 |
Brown |
|
|
LAD-1-500 |
470~520 |
10.0 |
50 |
Green/Black |
|
|
LAD-1-600 |
570~620 |
12.0 |
50 |
Gray |
|
|
LAD-1-750 |
700~750 |
15.2 |
50 |
Khaki |
|
|
LAD-1-850 |
750~870 |
17.0 |
50 |
Gray/Black |
|
|
LAD-1-1000 |
870~1050 |
20.2 |
50 |
Khaki/Black |
|
|
LAD-2 |
LAD-2-1200 |
1050~1250 |
24.0 |
50 |
Gray |
|
LAD-2-14OO |
1250~1500 |
30.2 |
50 |
Khaki |
|
|
LAD-2-1700 |
1400~1700 |
34.0 |
50 |
Gray/Black |
|
|
LAD-2-2000 |
1700~2000 |
40.4 |
50 |
Khaki/Black |
|
|
LAD-4 |
LAD-4-2400 |
2000~2400 |
48.0 |
50 |
Gray |
|
LAD-4-2800 |
2400~2800 |
60.4 |
50 |
Khaki |
|
|
LAD-4-3400 |
2800~3400 |
68.0 |
50 |
Gray/Black |
|
|
LAD-4-4000 |
3200~4000 |
80.8 |
50 |
Khaki/Black |
|
|
LAS-1 |
LAS-1-100 |
80~120 |
1.3 |
75 |
Yellow |
|
LAS-1-150 |
120~170 |
2.0 |
75 |
White |
|
|
LAS-1-250 |
170~270 |
3.3 |
75 |
Green |
|
|
LAS-1-300 |
270~320 |
4.0 |
75 |
Gray |
|
|
LAS-1-350 |
320~370 |
4.7 |
75 |
Red |
|
|
LAS-1-450 |
370~470 |
6.0 |
75 |
Blue |
|
|
LAS-1-550 |
470~570 |
7.6 |
75 |
Brown |
|
|
LAS-1-650 |
570~670 |
8.6 |
75 |
Khaki |
|
|
LAS-1-750 |
670~770 |
10.9 |
75 |
Blue/Black |
|
|
LAS-1-1000 |
750~1000 |
13.5 |
75 |
Khaki/Black |
|
Type |
Part numbers |
Rated Capacity KG |
Spring Rate KG/mm |
Rated Defl. mm |
Color Code |
|
LAS-2 |
LAS-2-1300 |
1100~1300 |
17.2 |
75 |
Khaki |
|
LAS-2-1500 |
1270~1550 |
21.8 |
75 |
Blue/Black |
|
|
LAS-2-2000 |
1950~2100 |
27.0 |
75 |
Khaki/Black |
|
|
LAS-4 |
LAS-4-2600 |
2300~2650 |
34.4 |
75 |
Khaki |
|
LAS-4-3000 |
2650~3100 |
43.6 |
75 |
Blue/Black |
|
|
LAS-4-4000 |
3100~41OO |
54.0 |
75 |
Khaki/Black |
|
|
LAF-1 |
LAF-1-100 |
50~100 |
1.0 |
100 |
Yellow |
|
LAF-1-150 |
100~150 |
1.5 |
100 |
White |
|
|
LAF-1-200 |
150~200 |
2.0 |
100 |
Drak Green |
|
|
LAF-1-300 |
200~300 |
3.0 |
100 |
Red |
|
|
LAF-1-350 |
300~350 |
3.5 |
100 |
Blue |
|
|
LAF-1-400 |
350~400 |
4.0 |
100 |
Yellow/Black |
|
|
LAF-1-450 |
400~450 |
4.5 |
100 |
White/Black |
|
|
LAF-1-500 |
450~500 |
5.0 |
100 |
Brown |
|
|
LAF-1-600 |
500~600 |
5.9 |
100 |
Red/Black |
|
|
LAF-1-700 |
600~700 |
7.0 |
100 |
Gray |
|
|
LAF-1-800 |
700~800 |
8.0 |
100 |
Brown/Black |
|
|
LAF-1-1000 |
800~1000 |
10.0 |
100 |
Gray/Black |
|
|
LAH-1 |
LAH-1-200 |
160~200 |
1.6 |
125 |
Drak Green |
|
LAH-1-300 |
200~300 |
2.4 |
125 |
Red |
|
|
LAH-1-350 |
300~350 |
2.8 |
125 |
Drak Green |
|
|
LAH-1-400 |
350~400 |
3.2 |
125 |
Blue |
|
|
LAH-1-450 |
400~450 |
3.6 |
125 |
Red/Black |
|
|
LAH-1-550 |
450~550 |
4.4 |
125 |
Brown |
|
|
LAH-1-700 |
550~700 |
5.2 |
125 |
Brown/Black |
|
|
LAH-1-750 |
700~750 |
6.0 |
125 |
Gray |
|
|
LAH-1-900 |
750~900 |
6.8 |
125 |
Green/Black |
|
|
LAH-1-1000 |
900~1000 |
7.9 |
125 |
Khaki |
|
|
LAH-1-1300 |
1000~1300 |
10.0 |
125 |
Drak Green |
