Feature:

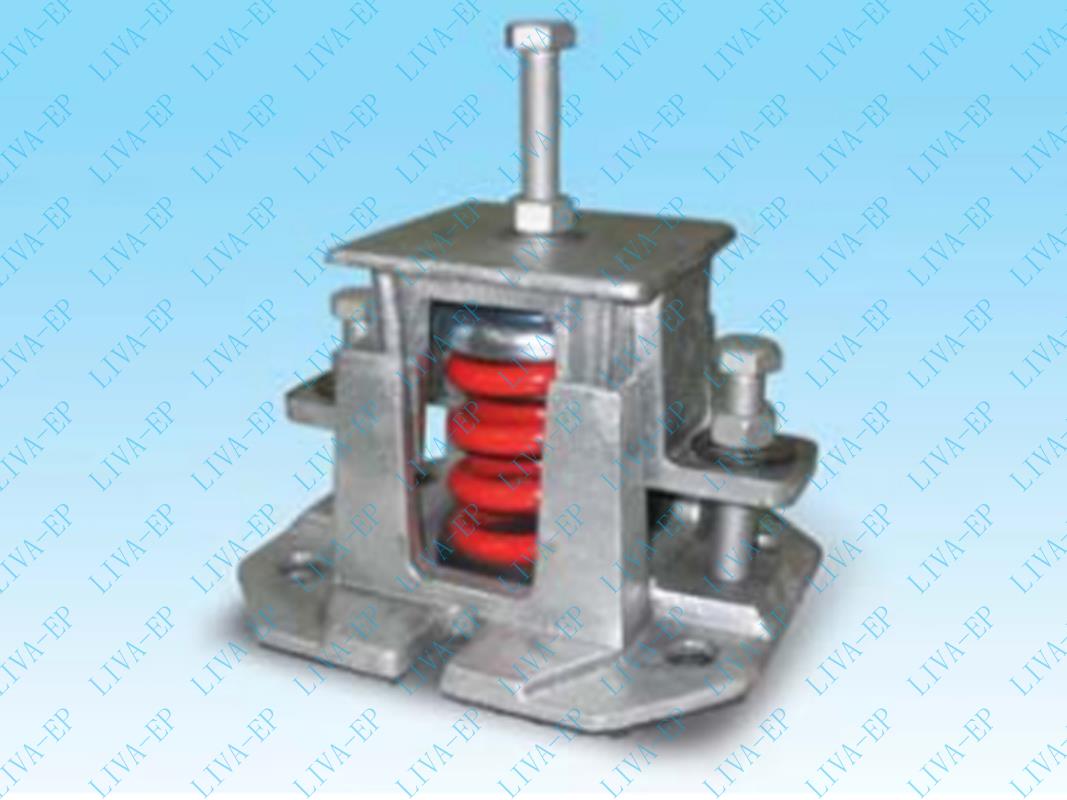

★Vibration Isolators and Seismic Restraints

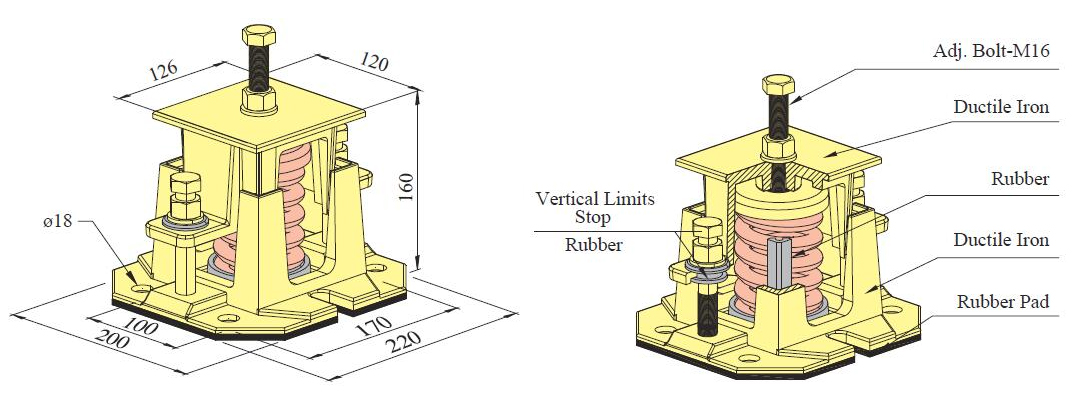

★Ductile iron frame and housing.
★Seismic strength: horizontal direction: 1G, vertical direction: 0.5G.
★Low natural frequency.
★Hop dip galvanization finish.
★Non-skid Neoprene pad.
★Resilient housing guides to prevent metal-to-matel contact.
★Quick and easy installation.
★Heavy-duty vibration isolation.
★Weather resistant finish.
Applications:
★Heavy engines、Pumps、Compressors、Chillers、Boilers、Generators
|
Type |
Rated Capacity KG |
Spring Rate KG/mm |
Rated Defl. mm |
Color Code |
|
LG-170-M |
150~190 |
4.3 |
40 |
Blue |
|
LG-200-M |
175~225 |
5.0 |
40 |
Brown |
|
LG-270-M |
230~300 |
6.8 |
40 |
Gray |
|
LG-340-M |
300~380 |
8.5 |
40 |
White / Black |
|
LG-410-M |
360~460 |
10.3 |
40 |
Green / Black |
|
LG-450-M |
420~470 |
11.3 |
40 |
Khaki |
|
LG-530-M |
500~550 |
13.2 |
40 |
Gray / Black |
|
LG-650-M |
620~690 |
16.3 |
40 |
Drak Green |
|
LG-700-M |
680~750 |
17.8 |
40 |
Khaki / Black |
|
LG-750-M |
710~790 |
18.8 |
40 |
Red |
|
LG-910-M |
860~960 |
22.8 |
40 |
Green / Black |
|
LG-1000-M |
960~1060 |
25.3 |
40 |
Red / Black |
