Feature:
★All-metal multidirectional anti-vibration/shock mounts.
★Excellent reliability and long lifespan.
★High damping.
★Corrosion resistant.
★ Wide temperature range: -180°C～+300°C.
★Great adaptability/versatility.
★Customized design can be done.
Applications:
★Car Equipment
★Shipboard equipment
★Airborne equipment
★Fire and communications equipment
|

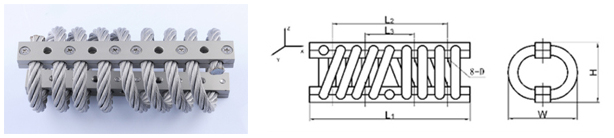

Type |
Dimensions (mm) |
Static Stiffness (N/㎜) |
Max.Shock((kN) |
Rated Capacity (kg) |
Weight (KG) |
|||||||||||
|
L1 |
L2 |
L3 |
H |
W |
D |
Kx |
K45 |
Kz |
PX |
P45 |
Pz |
Mx |
M45 |
Mz |
||
|
GS-4-01 |
146 |
131 |
－ |
55 |
60 |
M8 |
103 |
159 |
260 |
2.8 |
2.3 |
4 |
25 |
50 |
80 |
0.56 |
|
GS-4-02 |
61 |
67 |
50 |
116 |
164 |
1.9 |
1.7 |
2.4 |
12 |
35 |
50 |
0.6 |
||||
|
GS-4-03 |
65 |
74 |
33 |
86 |
122 |
1.3 |
1.9 |
2.1 |
10 |
25 |
40 |
0.63 |
||||
|
GS-4-04 |
69 |
83 |
22 |
62 |
88 |
1.4 |
1.3 |
1.6 |
8 |
20 |
30 |
0.67 |
||||
|
GS-4-05 |
71 |
92 |
17 |
52 |
70 |
1.4 |
1 |
1.6 |
5 |
16 |
24 |
0.68 |
||||
|
GS-4-06 |
73 |
99 |
14 |
43 |
65 |
1.2 |
1.1 |
1.3 |
5 |
12 |
18 |
0.7 |
||||
|
GS-4-07 |
75 |
104 |
12 |
36 |
54 |
1.1 |
1.6 |
1.2 |
4 |
10 |
15 |
0.71 |
||||
|
GS-4-08 |
89 |
111 |
7.7 |
26 |
39 |
0.6 |
0.8 |
1.2 |
3 |
8 |
12 |
0.72 |
||||
|
GS-4-09 |
178 |
156 |
66 |
90 |
105 |
M8 |
100 |
296 |
439 |
4.3 |
4.3 |
7.3 |
30 |
85 |
125 |
2.04 |
|
GS-4-10 |
95 |
121 |
70 |
222 |
317 |
2.8 |
3.4 |
6 |
22 |
65 |
110 |
2.2 |
||||
|
GS-4-11 |
108 |
133 |
46 |
158 |
260 |
2.2 |
3 |
4.5 |
15 |
50 |
80 |
2.35 |
||||
|
GS-4-12 |
124 |
144 |
39 |
114 |
200 |
2.1 |
2.3 |
4 |
12 |
40 |
64 |
2.53 |
||||
|
GS-4-13 |
137 |
156 |
32 |
81 |
152 |
1.7 |
4 |
4.3 |
9 |
35 |
52 |
2.73 |
||||
|
GS-4-14 |
216 |
166 |
71 |
71 |
84 |
M8 |
119 |
259 |
413 |
2.8 |
3 |
4.4 |
35 |
80 |
120 |
1.71 |
|
GS-4-15 |
74 |
89 |
88 |
239 |
330 |
3.2 |
2.8 |
4.9 |
25 |
70 |
100 |
1.75 |
||||
|
GS-4-16 |
76 |
105 |
67 |
174 |
253 |
2.6 |
2.7 |
4.4 |
20 |
50 |
70 |
1.79 |
||||
|
GS-4-17 |
83 |
108 |
49 |
143 |
225 |
2.4 |
2.8 |
3.9 |
15 |
45 |
60 |
1.85 |
||||
|
GS-4-18 |
89 |
108 |
48 |
120 |
205 |
2.1 |
2.5 |
3.8 |
13 |
40 |
55 |
1.91 |
||||
|
GS-4-19 |
105 |
121 |
29 |
80 |
143 |
2.3 |
2.1 |
2.4 |
8 |
30 |
40 |
1.97 |
||||
|
GS-4-20 |
267 |
191 |
82 |
89 |
103 |
M10 |
430 |
1020 |
1800 |
18 |
13 |
27 |
150 |
300 |
500 |
4.1 |
|
GS-4-21 |
99 |
112 |
417 |
926 |
1402 |
13 |
11 |
19 |
130 |
250 |
400 |
4.3 |
||||
|
GS-4-22 |
109 |
135 |
256 |
588 |
1063 |
8.1 |
7.6 |
13 |
70 |
200 |
300 |
4.5 |
||||
|
GS-4-23 |
119 |
152 |
178 |
383 |
719 |
7 |
5.6 |
11 |
50 |
130 |
220 |
4.9 |
||||
|
GS-4-24 |
127 |
165 |
127 |
299 |
507 |
8.3 |
7.6 |
13 |
35 |
110 |
170 |
5.3 |
||||
|
GS-4-25 |
370 |
268 |
114 |
133 |
140 |
M16 |
851 |
1114 |
2470 |
22 |
27 |
31 |
275 |
365 |
686 |
11 |
|
GS-4-26 |
152 |
165 |
597 |
720 |
1474 |
26 |
26 |
33 |
198 |
252 |
467 |
12 |
||||
|
GS-4-27 |
159 |
178 |
469 |
590 |
1218 |
18 |
20 |
31 |
160 |
216 |
446 |
13 |
||||
|
GS-4-28 |
191 |
210 |
291 |
489 |
728 |
22 |
24 |
27 |
96 |
240 |
345 |
15 |
||||
|
GS-4-29 |
216 |
235 |
161 |
303 |
607 |
20 |
21 |
19 |
59 |
140 |
280 |
17 |
||||
