Feature:

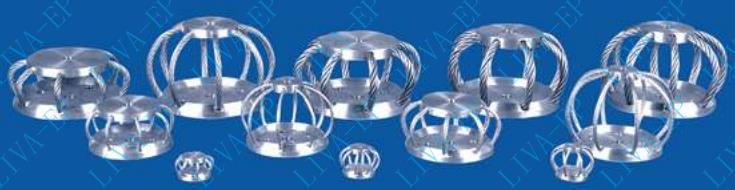

★All-metal multidirectional anti-vibration/shock mounts.
★Excellent reliability and long lifespan.
★High damping.
★Corrosion resistant.
★ Wide temperature range: -180°C～+300°C.
★Great adaptability/versatility.
★Customized design can be done.
Applications:
★Car Equipment
★Shipboard equipment
★Airborne equipment
★Fire and communications equipment
|

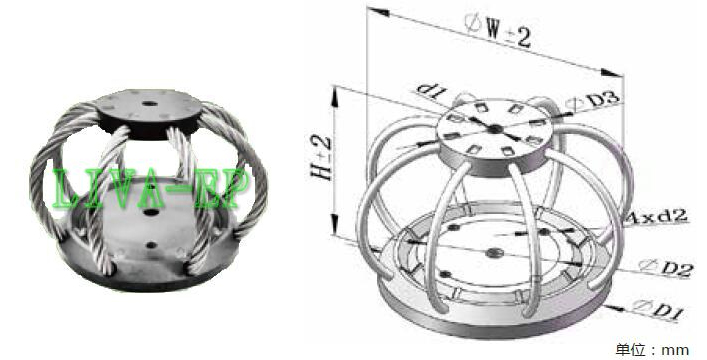

Type |
Dimensions（mm) |
Rated Capacity（KG) |
Static Stiffness（N/mm) |
Max.Dyn Deflection mm |
Max.Shock(KN) |
||||||
|
ΦD1 |
ΦD2 |
ΦD3 |
ΦW |
H |
d1 |
d2 |
|||||
|
GS-2-01 |
70 |
36 |
38 |
77 |
47 |
M6 |
M4 |
2 |
3.5 |
35 |
0.05 |
|
GS-2-02 |
70 |
35 |
52 |
76 |
37 |
M6 |
M4 |
5 |
10.5 |
25 |
0.1 |
|
GS-2-03 |
102 |
60 |
52 |
121 |
77 |
M8 |
M6 |
8 |
25 |
63 |
0.46 |
|
GS-2-04 |
102 |
60 |
64 |
113 |
62 |
M8 |
M6 |
13 |
39 |
48 |
0.7 |
|
GS-2-05 |
102 |
60 |
52 |
120 |
76 |
M8 |
M6 |
19 |
60 |
59 |
0.85 |
|
GS-2-06 |
102 |
60 |
64 |
120 |
71 |
M8 |
M6 |
27 |
72 |
54 |
1.1 |
|
GS-2-07 |
102 |
60 |
76 |
110 |
45 |
M8 |
M6 |
31 |
101 |
31 |
1.55 |
|
GS-2-08 |
102 |
60 |
76 |
124 |
62 |
M8 |
M6 |
41 |
119 |
45 |
1.8 |
