Feature:
★Mainly used with an inertial base as an open-type spring mount.
★Easy to install, allows easy inspection since the spring.
★Deflection can be visually checked.
★With a spring deflection of 25mm~75mm.
★Used for equipment that needs maximum isolation.
★Quick and easy installation
★Heavy-duty vibration isolation
★Spring diameter shall be not less than 0.8 times the compressed height of the spring at the design load. Springs shall have a minimum additional travel to solid equal to 50 percent of the actual deflection.
Applications:
Air blowers、Pumps、Compressors
|

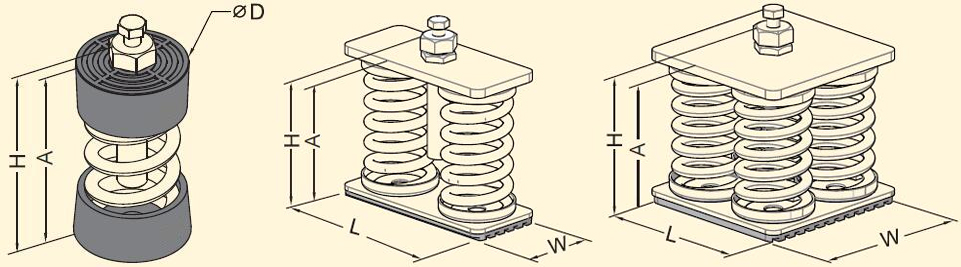

Type |
Dimensions（mm） |
Type |
Dimensions（mm） |
||||||
|
DΦ |
H |
A |
Mou.Bolt |
DΦ |
H |
A |
Mou.Bolt |
||
|
LC |
83 |
165 |
150 |
M12 |
LCD |
106 |
197 |
170 |
M12 |
|
LCA |
83 |
175 |
160 |
M12 |
LCS |
124 |
260 |
230 |
M16 |
|
Type |
Dimensions（mm） |
Type |
Dimensions（mm） |
||||||||
|
L |
W |
H |
A |
CS |
L |
W |
H |
A |
CS |
||
|
LC-2 |
185 |
80 |
170 |
150 |
M12 |
LC-4 |
160 |
160 |
170 |
150 |
M12 |
|
LCA-2 |
185 |
80 |
180 |
160 |
M12 |
LCA-4 |
160 |
160 |
180 |
160 |
M12 |
|
LCD-2 |
220 |
100 |
207 |
176 |
M12 |
LCD-4 |
195 |
195 |
207 |
176 |
M12 |
|
LCS-2 |
260 |
120 |
246 |
224 |
M16 |
LCS-4 |
230 |
230 |
246 |
224 |
M16 |
Specification
|
Type |
Rated Capacity KG |
Spring Rate KG/mm |
Rated Defl. Mm |
Color Code |
Type |
Rated Capacity KG |
Spring Rate KG/mm |
Rated Defl. Mm |
Color Code |
|
LC-100-C |
90~105 |
4.2 |
25 |
Yellow |
LC-2-1000 |
950~1050 |
40.0 |
25 |
Red |
|
LC-150-C |
130~160 |
5.3 |
25 |
White |
LC-2-1200 |
1050~1250 |
48.0 |
25 |
Gray |
|
LC-200-C |
160~210 |
7.1 |
25 |
Green |
LC-2-1400 |
1250~1400 |
56.0 |
25 |
Yellow |
|
LC-250-C |
210~260 |
8.7 |
25 |
Red |
LC-2-1600 |
1400~1600 |
68.0 |
25 |
Khaki |
|
LC-300-C |
260~320 |
10.8 |
25 |
Blue |
LC-2-2000 |
1850~2150 |
80.0 |
25 |
Dark Green |
|
LC-400-C |
360~430 |
14.2 |
25 |
Brown |
LC-2-1300A |
1260~1340 |
32.4 |
40 |
Green |
|
LC-500-C |
470~530 |
19.2 |
25 |
Red |
LC-2-1400A |
1360~1440 |
36.6 |
40 |
Purple |
|
LC-600-C |
530~650 |
22.6 |
25 |
Gray |
LC-2-1700A |
1450~1700 |
42.5 |
40 |
Dark Green |
|
LC-700-C |
650~700 |
26.0 |
25 |
Yellow |
LC-2-2000A |
1700~2000 |
53.2 |
40 |
Yellow |
|
LC-850-C |
700~850 |
33.6 |
25 |
Khaki |
LC-2-1200D |
1100~1250 |
24.0 |
50 |
Gray |
|
LC-1000-C |
850~1000 |
46.0 |
25 |
Dark Green |
LC-2-1400D |
1400~1500 |
30.2 |
50 |
Khaki |
|
LC-150-A |
130~160 |
3.5 |
40 |
Blue |
LC-2-1700D |
1500~1740 |
34.0 |
50 |
Green |
|
LC-200-A |
160~210 |
4.9 |
40 |
Brown |
LC-2-2000D |
1700~2000 |
40.4 |
50 |
Blue |
|
LC-350-A |
340~360 |
8.6 |
40 |
Gray |
LC-2-1300S |
1100~1300 |
17.2 |
75 |
Khaki |
|
LC-450-A |
420~460 |
11.9 |
40 |
Red |
LC-2-1500S |
1270~1550 |
21.8 |
75 |
Orange |
|
LC-650-A |
630~670 |
16.2 |
40 |
Green |
LC-2-2000S |
1950~2100 |
27.0 |
75 |
Green |
|
LC-850-A |
680~850 |
21.3 |
40 |
Dark Green |
LC-4-2000 |
1600~2000 |
80.0 |
25 |
Red |
|
LC-1000-A |
1000~1100 |
26.6 |
40 |
Yellow |
LC-4-2400 |
2000~2400 |
96.0 |
25 |
Gray |
|
LC-100-D |
90~120 |
2.0 |
50 |
Yellow |
LC-4-2800 |
2400~2800 |
112.0 |
25 |
Yellow |
|
LC-150-D |
120~160 |
3.0 |
50 |
White |
LC-4-3400 |
2800~3400 |
136.0 |
25 |
Khaki |
|
LC-250-D |
160~260 |
5.0 |
50 |
Green |
LC-4-4000 |
3400~4000 |
160.0 |
25 |
Dark Green |
|
LC-350-D |
320~360 |
7.0 |
50 |
Red |
LC-4-4800 |
4000~4800 |
192.0 |
25 |
Blue |
|
LC-450-D |
420~470 |
9.0 |
50 |
Brown |
LCA-4-2600 |
1800~2600 |
65.0 |
40 |
Green |
|
LC-600-D |
570~620 |
12.0 |
50 |
Gray |
LCA-4-3400 |
2600~3400 |
85.0 |
40 |
Dark Green |
|
LC-750-D |
700~750 |
15.2 |
50 |
Khaki |
LCA-4-4000 |
3400~4000 |
100.0 |
40 |
Yellow |
|
LC-850-D |
750~870 |
17.0 |
50 |
Green |
LCD-4-2400 |
2000~2400 |
48.0 |
50 |
Gray |
|
LC-1000-D |
870~1050 |
20.2 |
50 |
Blue |
LCD-4-3000 |
2400~3000 |
60.0 |
50 |
Khaki |
|
LCS-1-150 |
75~150 |
2 |
75 |
White |
LCD-4-3400 |
3000~3400 |
68.0 |
50 |
Green |
|
LCS-1-250 |
150~250 |
3 |
75 |
Dark Green |
LCD-4-4000 |
3400~4000 |
80.0 |
50 |
Blue |
|
LCS-1-350 |
250~350 |
5 |
75 |
Red |
LCS-4-2600 |
2000~2600 |
35.0 |
75 |
Khaki |
|
LCS-1-450 |
350~450 |
6 |
75 |
Blue |
LCS-4-3000 |
2600~3000 |
40.0 |
75 |
Orange |
|
LCS-1-650 |
450~650 |
9 |
75 |
Khaki |
LCS-4-4000 |
3000~4000 |
53.0 |
75 |
Green |
|
LCS-1-750 |
650~750 |
10 |
75 |
Orange |
|
|
|
|
|
|
LCS-1-1000 |
750~1000 |
13 |
75 |
Green |
|
|
|
|
|
