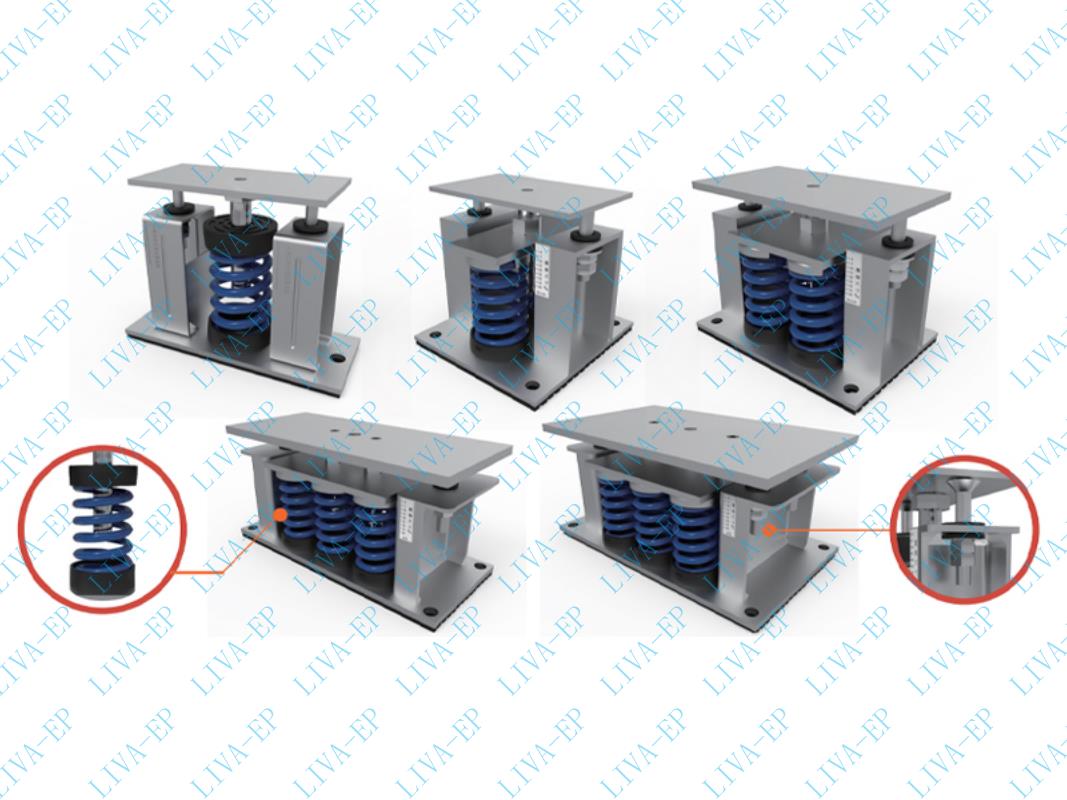

Feature:
★Low natural frequency.
★Non-skid Neoprene pad.
★Frame coating dacrotizing finish.
★Quick and easy installation.
★Heavy-duty vibration isolation.
★ED & stove varnish finish on spring exterior use.
★Quick and easy installation.
★Heavy-duty vibration isolation.
★Weather resistant finish.
★Spring diameter shall be not less than 0.8 times the compressed height of the spring at the design load. Springs shall have a minimum additional travel to solid equal to 50 percent of the actual deflection.

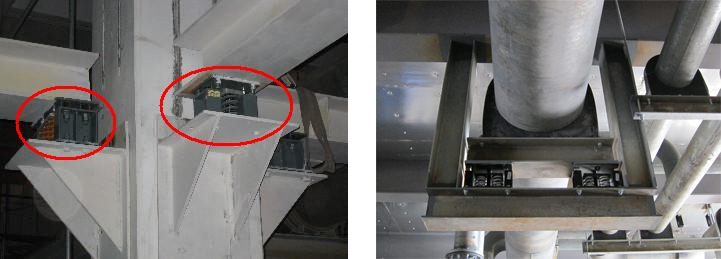

Applications:
★Heavy engines、 Pumps、Chillers、boilers、Cooling towers、Generators。
|

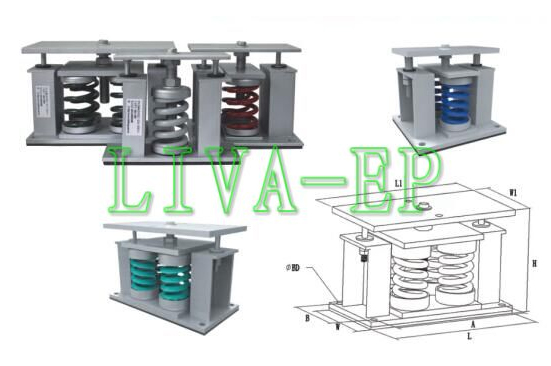

Type |
Dimensions（mm） |
Mou.Boltmm |
Type |
Dimensions（mm） |
Mou.Boltmm |
||||||||||||
|
L |
W |
L1 |
W1 |
A |
B |
H |
BD |
L |
W |
L1 |
W1 |
A |
B |
H |
BD |
||
|
LA-1 |
260 |
100 |
210 |
100 |
230 |
0 |
195 |
16 |
LAD-1 |
280 |
125 |
280 |
125 |
250 |
95 |
225 |
16 |
|
LA-2 |
205 |
220 |
205 |
125 |
165 |
180 |
200 |
16 |
LAD-2 |
280 |
220 |
280 |
220 |
250 |
190 |
225 |
16 |
|
LA-4 |
270 |
190 |
270 |
150 |
230 |
150 |
200 |
16 |
LAD-4 |
380 |
210 |
380 |
210 |
350 |
180 |
225 |
16 |
|
LA-6 |
400 |
170 |
400 |
170 |
370 |
140 |
197 |
18 |
LAS-1 |
310 |
230 |
310 |
230 |
260 |
180 |
290 |
18 |
|
LA-9 |
420 |
250 |
420 |
250 |
384 |
214 |
197 |
18 |
LAS-2 |
320 |
280 |
320 |
280 |
270 |
230 |
305 |
18 |
|
LAC-1 |
260 |
100 |
210 |
100 |
230 |
0 |
195 |
16 |
LAS-4 |
440 |
310 |
440 |
310 |
390 |
260 |
305 |
18 |
|
LAC-2 |
205 |
220 |
205 |
125 |
165 |
180 |
200 |
16 |
LAF-1 |
370 |
260 |
370 |
200 |
320 |
210 |
390 |
20 |
|
LAC-4 |
270 |
190 |
270 |
150 |
230 |
150 |
200 |
16 |
LAF-1 |
370 |
260 |
370 |
200 |
320 |
210 |
430 |
20 |
|
|
|

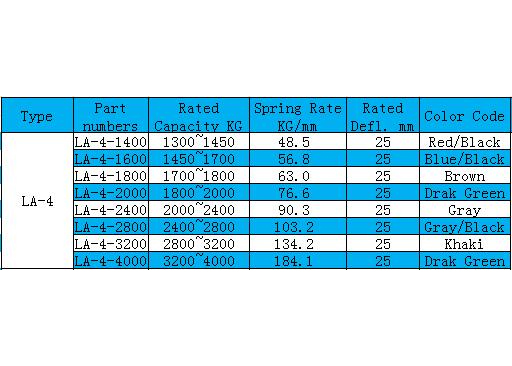

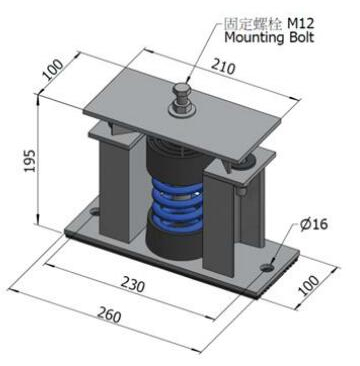

LA-1 |
|

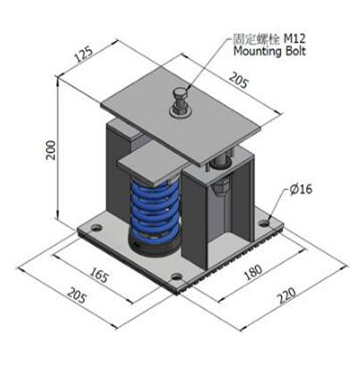

LA-2 |
|

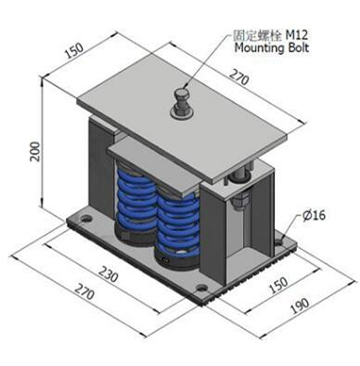

LA-4 |
|

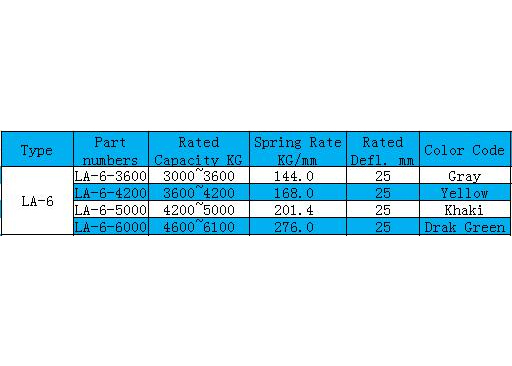

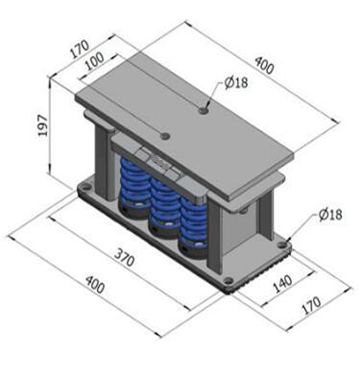

LA-6 |
|

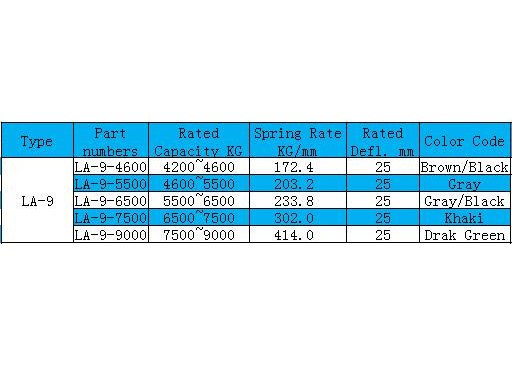

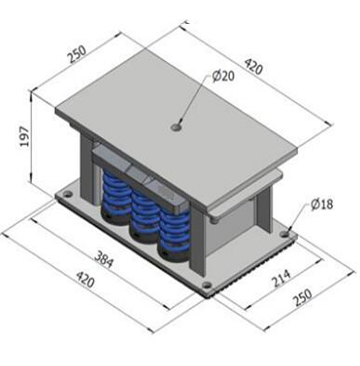

LA-9 |
|

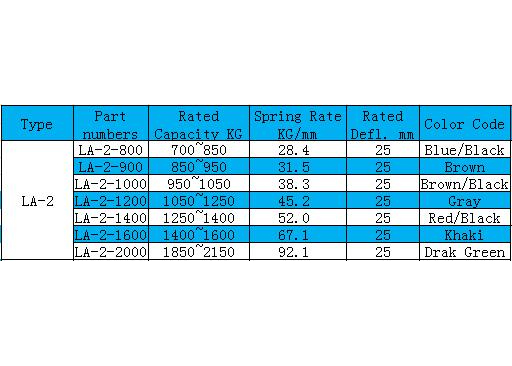

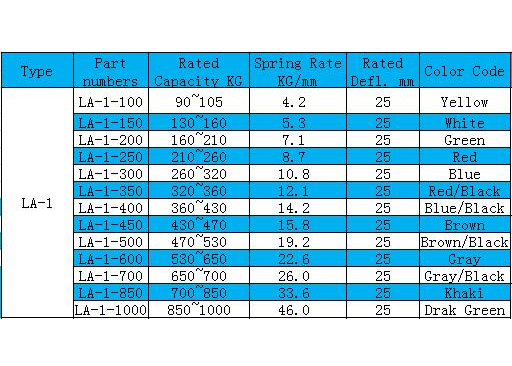

Type |
Part numbers |
Rated Capacity KG |
Spring Rate KG/mm |
Rated Defl. mm |
Color Code |
|
LAC-1 |
LAC-1-150 |
130~160 |
3.5 |
40 |
Blue |
|
LAC-1-200 |
160~210 |
4.9 |
40 |
Brown |
|
|
LAC-1-350 |
340~360 |
8.6 |
40 |
Gray |
|
|
LAC-1-450 |
420~460 |
11.9 |
40 |
Red |
|
|
LAC-1-650 |
630~670 |
16.2 |
40 |
Green |
|
|
LAC-1-700 |
680~720 |
18.3 |
40 |
Purple |
|
|
LAC-1-1000 |
720~1000 |
26.6 |
40 |
Yellow |
|
|
LAC-2 |
LAC-2-900 |
840~920 |
23.8 |
40 |
Red |
|
LAC-2-1300 |
1260~1340 |
32.4 |
40 |
Green |
|
|
LAC-2-1400 |
1360~1440 |
36.6 |
40 |
Purple |
|
|
LAC-2-2000 |
1700~2000 |
53.2 |
40 |
Yellow |
|
Type |
Part numbers |
Rated Capacity KG |
Spring Rate KG/mm |
Rated Defl. mm |
Color Code |
|
LAC-4 |
LAC-4-800 |
760~840 |
19.6 |
40 |
Brown |
|
LAC-4-1200 |
1080~1240 |
27.6 |
40 |
Orange |
|
|
LAC-4-1400 |
1360~1440 |
34.4 |
40 |
Gray |
|
|
LAC-4-1800 |
1680~1840 |
47.6 |
40 |
Red |
|
|
LAC-4-2600 |
2520~2680 |
64.8 |
40 |
Green |
|
|
LAC-4-2800 |
2720~2880 |
73.2 |
40 |
Purple |
|
|
LAC-4-4000 |
3800~4000 |
100.0 |
40 |
Yellow |
|
|
LAD-1 |
LAD-1-100 |
90~120 |
2.0 |
50 |
Yellow |
|
LAD-1-150 |
120~160 |
3.0 |
50 |
White |
|
|
LAD-1-250 |
160~260 |
5.0 |
50 |
Green |
|
|
LAD-1-350 |
320~360 |
7.0 |
50 |
Red |
|
|
LAD-1-400 |
360~420 |
8.0 |
50 |
White/Black |
|
|
LAD-1-450 |
420~470 |
9.0 |
50 |
Brown |
|
|
LAD-1-500 |
470~520 |
10.0 |
50 |
Green/Black |
|
|
LAD-1-600 |
570~620 |
12.0 |
50 |
Gray |
|
|
LAD-1-750 |
700~750 |
15.2 |
50 |
Khaki |
|
|
LAD-1-850 |
750~870 |
17.0 |
50 |
Gray/Black |
|
|
LAD-1-1000 |
870~1050 |
20.2 |
50 |
Khaki/Black |
|
|
LAD-2 |
LAD-2-1200 |
1050~1250 |
24.0 |
50 |
Gray |
|
LAD-2-14OO |
1250~1500 |
30.2 |
50 |
Khaki |
|
|
LAD-2-1700 |
1400~1700 |
34.0 |
50 |
Gray/Black |
|
|
LAD-2-2000 |
1700~2000 |
40.4 |
50 |
Khaki/Black |
|
|
LAD-4 |
LAD-4-2400 |
2000~2400 |
48.0 |
50 |
Gray |
|
LAD-4-2800 |
2400~2800 |
60.4 |
50 |
Khaki |
|
|
LAD-4-3400 |
2800~3400 |
68.0 |
50 |
Gray/Black |
|
|
LAD-4-4000 |
3200~4000 |
80.8 |
50 |
Khaki/Black |
|
|
LAS-1 |
LAS-1-100 |
80~120 |
1.3 |
75 |
Yellow |
|
LAS-1-150 |
120~170 |
2.0 |
75 |
White |
|
|
LAS-1-250 |
170~270 |
3.3 |
75 |
Green |
|
|
LAS-1-300 |
270~320 |
4.0 |
75 |
Gray |
|
|
LAS-1-350 |
320~370 |
4.7 |
75 |
Red窗体顶端 |
|
|
LAS-1-450 |
370~470 |
6.0 |
75 |
Blue |
|
|
LAS-1-550 |
470~570 |
7.6 |
75 |
Brown |
|
|
LAS-1-650 |
570~670 |
8.6 |
75 |
Khaki |
|
|
LAS-1-750 |
670~770 |
10.9 |
75 |
Blue/Black |
|
|
LAS-1-1000 |
750~1000 |
13.5 |
75 |
Khaki/Black窗体底端 |
|
Type |
Part numbers |
Rated Capacity KG |
Spring Rate KG/mm |
Rated Defl. mm |
Color Code |
|
|
|
窗体顶端 |
|||||||
|
LAS-2 |
LAS-2-1300 |
1100~1300 |
17.2 |
75 |
Khaki |
|
|
|
LAS-2-1500 |
1270~1550 |
21.8 |
75 |
Blue/Black |
|
||
|
LAS-2-2000 |
1950~2100 |
27.0 |
75 |
Khaki/Black |
|
||
|
LAS-4 |
LAS-4-2600 |
2300~2650 |
34.4 |
75 |
Khaki |
|
|
|
LAS-4-3000 |
2650~3100 |
43.6 |
75 |
Blue/Black |
|
||
|
LAS-4-4000 |
3100~41OO |
54.0 |
75 |
Khaki/Black |
|
||
|
LAF-1 |
LAF-1-100 |
50~100 |
1.0 |
100 |
Yellow |
|
|
|
LAF-1-150 |
100~150 |
1.5 |
100 |
White |
|
||
|
LAF-1-200 |
150~200 |
2.0 |
100 |
Dark Green |
|
||
|
LAF-1-300 |
200~300 |
3.0 |
100 |
Red |
|
||
|
LAF-1-350 |
300~350 |
3.5 |
100 |
Blue |
|
||
|
LAF-1-400 |
350~400 |
4.0 |
100 |
Yellow/Black |
|
||
|
LAF-1-450 |
400~450 |
4.5 |
100 |
White/Black |
|
||
|
LAF-1-500 |
450~500 |
5.0 |
100 |
Brown |
|
||
|
LAF-1-600 |
500~600 |
5.9 |
100 |
Red/Black |
|
||
|
LAF-1-700 |
600~700 |
7.0 |
100 |
Gray |
|
||
|
LAF-1-800 |
700~800 |
8.0 |
100 |
Brown/Black |
|
||
|
LAF-1-1000 |
800~1000 |
10.0 |
100 |
Gray/Black |
|
||
|
LAH-1 |
LAH-1-200 |
160~200 |
1.6 |
125 |
Dark Green |
|
|
|
LAH-1-300 |
200~300 |
2.4 |
125 |
Red |
|
||
|
LAH-1-350 |
300~350 |
2.8 |
125 |
Dark Green |
|
||
|
LAH-1-400 |
350~400 |
3.2 |
125 |
Blue |
|
||
|
LAH-1-450 |
400~450 |
3.6 |
125 |
Red/Black |
|
||
|
LAH-1-550 |
450~550 |
4.4 |
125 |
Brown |
|
||
|
LAH-1-700 |
550~700 |
5.2 |
125 |
Brown/Black |
|
||
|
LAH-1-750 |
700~750 |
6.0 |
125 |
Gray |
|
||
|
LAH-1-900 |
750~900 |
6.8 |
125 |
Green/Black |
|
||
|
LAH-1-1000 |
900~1000 |
7.9 |
125 |
Khaki |
|
||
|
LAH-1-1300 |
1000~1300 |
10.0 |
125 |
Dark Green窗体底端 |
|
||
